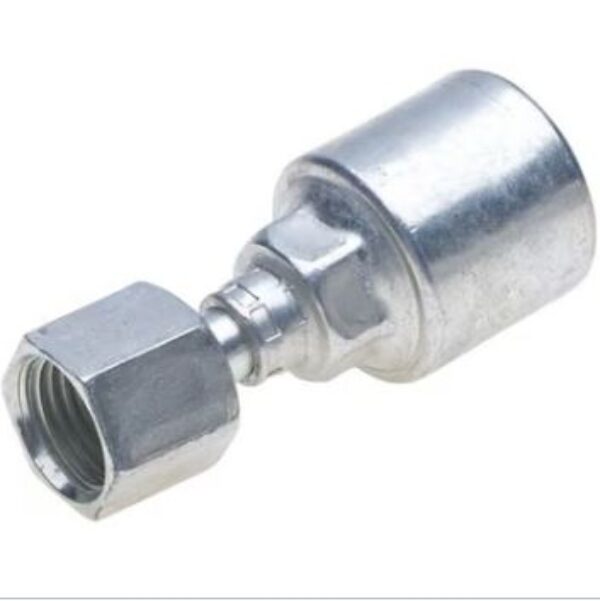

ORFS Female Flat-Face O-Ring Swivel – Megacrimp
Gates ORFS Female Flat-Face O-Ring Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | mm | mm | mm | mm | ||||
| MCORF-09-04 | 4G-4FFORX | 7104-18045 | 1/4 | 6.4 | 9/16-18 | 15.0 | 17.0 | 52.7 | 26.7 |
| MCORF-11-04 | 4G-6FFORX | 7104-18055 | 1/4 | 6.4 | 11/16-16 | 15.0 | 22.0 | 51.1 | 25.1 |
| MCORF-11-05¥ | 5G-6FFORX | 7104-19505 | 5/16 | 7.9 | 11/16-16 | 17.0 | 22.0 | 61.5 | 33.5 |
| MCORF-09-06¥ | 6G-4FFORX | 7104-19085 | 3/8 | 9.5 | 9/16-18 | 17.0 | 17.0 | 78.3 | 50.3 |
| MCORF-11-06 | 6G-6FFORX | 7104-18095 | 3/8 | 9.5 | 11/16-16 | 18.0 | 22.0 | 57.7 | 28.9 |
| MCORF-13-06 | 6G-8FFORX | 7104-18105 | 3/8 | 9.5 | 13/16-16 | 18.0 | 24.0 | 57.4 | 28.6 |
| MCORF-11-08¥ | 8G-6FFORX | 7104-18145 | 1/2 | 12.7 | 11/16-16 | 22.0 | 22.0 | 95.9 | 34.9 |
| MCORF-13-08 | 8G-8FFORX | 7104-18155 | 1/2 | 12.7 | 13/16-16 | 22.0 | 24.0 | 65.5 | 31.3 |
| MCORF-16-08 | 8G-10FFORX | 7104-18165 | 1/2 | 12.7 | 1-14 | 22.0 | 30.0 | 70.0 | 34.8 |
| MCORF-19-08 | 8G-12FFORX | 7104-18175 | 1/2 | 12.7 | 1 3/16-12 | 22.0 | 36.0 | 66.5 | 31.3 |
| MCORF-16-10 | 10G-10FFORX | 7104-18205 | 5/8 | 15.8 | 1-14 | 24.0 | 30.0 | 76.0 | 38.5 |
| MCORF-19-10 | 10G-12FFORX | 7104-18215 | 5/8 | 15.8 | 1 3/16-12 | 24.0 | 36.0 | 77.0 | 39.5 |
| MCORF-14-12¥ | 12G-10FFORX | 7104-19245 | 3/4 | 19.0 | 1-14 | 30.0 | 30.0 | 95.1 | 44.1 |
| MCORF-19-12 | 12G-12FFORX | 7104-18255 | 3/4 | 19.0 | 1 3/16-12 | 30.0 | 36.0 | 92.8 | 41.8 |
| MCORF-23-12 | 12G-16FFORX | 7104-18265 | 3/4 | 19.0 | 1 7/16-12 | 30.0 | 41.0 | 88.3 | 37.3 |
| MCORF-19-16¥ | 16G-12FFORX | 7104-19295 | 1 | 25.4 | 1 3/16-12 | 36.0 | 36.0 | 141.8 | 85.0 |
| MCORF-23-16 | 16G-16FFORX | 7104-18305 | 1 | 25.4 | 1 7/16-12 | 36.0 | 41.0 | 104.0 | 47.2 |
| MCORF-27-16¥ | 16G-20FFORX | 7104-18315 | 1 | 25.4 | 1 11/16-12 | 36.0 | 50.0 | 103.0 | 46.2 |
| MCORF-27-20 | 20G-20FFORX | 7102-03945 | 1 1/4 | 31.7 | 1 11/16-12 | 44.5 | 47.6 | 114.4 | 55.4 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | mm | mm | mm | mm | ||||
| GSPORF-32-24 | 24GSP-24FFORX | 7347-30725 | 1 1/2 | 38.1 | 2-12 | 2.17 | 2.36 | 137 | 63.4 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCORF-09-04, MCORF-11-04, MCORF-11-05, MCORF-09-06, MCORF-11-06, MCORF-13-06, MCORF-11-08, MCORF-13-08, MCORF-16-08, MCORF-19-08, MCORF-16-10, MCORF-19-10, MCORF-14-12, MCORF-19-12, MCORF-23-12, MCORF-19-16, MCORF-23-16, MCORF-27-16, MCORF-27-20, GSPORF-32-24 |
|---|
