Male SAE 45° Flare Swivel – Megacrimp

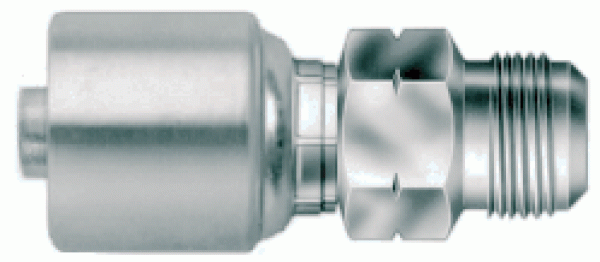

Gates Male SAE 45° Flare Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | inch | mm | mm | |||
| MCSM-07-04¥ | 4G-4MS | 1/4 | 6.4 | 7/16-20 | 1/2 | 53.5 | 27.5 |
| MCSM-08-04¥ | 4G-5MS | 1/4 | 6.4 | 1/2-20 | 1/2 | 54.8 | 28.8 |
| MCSM-10-06¥ | 6G-6MS | 3/8 | 9.5 | 5/8-18 | 5/8 | 58.0 | 30.1 |
| MCSM-12-06¥ | 6G-8MS | 3/8 | 9.5 | 3/4-16 | 3/16 | 61.4 | 33.4 |
| MCSM-12-08¥ | 8G-8MS | 1/2 | 12.7 | 3/4-16 | 13/16 | 70.5 | 33.0 |
| MCSM-14-08¥ | 8G-10MS | 1/2 | 12.7 | 7/8-14 | 7/8 | 73.5 | 36.0 |
| MCSM-17-12¥ | 12G-12MS | 3/4 | 19 | 1 1/16-14 | 1 1/16 | 96.0 | 45.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCSM-07-04, MCSM-08-04, MCSM-10-06, MCSM-12-06, MCSM-12-08, MCSM-14-08, MCSM-17-12 |
|---|
