Female Komatsu-Style Japanese Metric Swivel – Megacrimp
$26.112 – $97.402 ex GST
Description

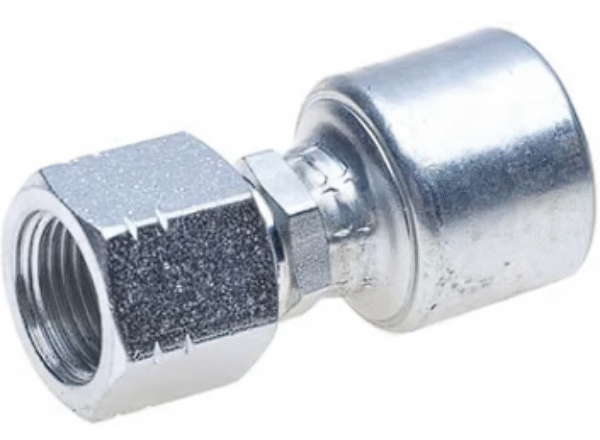

Female Komatsu-Style Japanese Metric Swivel – Megacrimp
Gates Female Komatsu-Style Japanese Metric Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | inch | inch | mm | mm | |||
| MCKF-14-04 | 4G-4FKX | 1/4 | 6.4 | M14 x 1.5 | 9/16 | 3/4 | 56.3 | 30.2 |
| MCKF-18-04¥ | 4G-6FKX | 1/4 | 6.4 | M18 x 1.5 | 11/16 | 7/8 | 61.3 | 35.3 |
| MCKF-18-06 | 6G-6FKX | 3/8 | 9.5 | M18 x 1.5 | 11/16 | 7/8 | 62.8 | 34.9 |
| MCKF-22-08 | 8G-8FKX | 1/2 | 12.7 | M22 x 1.5 | 7/8 | 1-1/16 | 74.5 | 37.0 |
| MCKF-24-10 | 10G-10FKX | 5/8 | 15.8 | M24 x 1.5 | 1 | 1-1/4 | 78.5 | 41.1 |
| MCKF-30-12 | 12G-12FKX | 3/4 | 19.0 | M30 x 1.5 | 1-1/8 | 1-3/8 | 87.1 | 46.1 |
| MCKF-33-16 | 16G-16FKX | 1 | 25.4 | M33 x 1.5 | 1-3/8 | 1-5/8 | 114.6 | 57.8 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCKF-14-04, MCKF-18-04, MCKF-18-06, MCKF-22-08, MCKF-24-10, MCKF-30-12, MCKF-33-16 |
|---|
