JIC Female 37° Flare Swivel – 30° – Global Spiral
Description

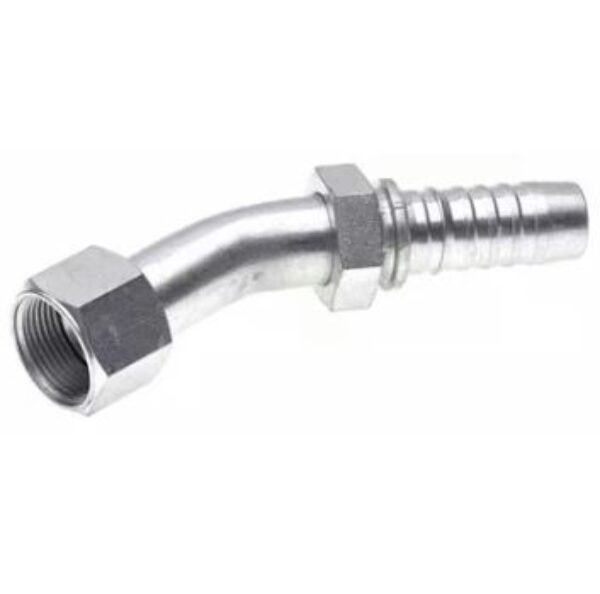

JIC Female 37° Flare Swivel – 30° – Global Spiral
Gates JIC Female 37° Flare Swivel – 30° couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
S, M, and L Drops per ISO Final Draft International Standard 12151-S.
D3 – Fittings for Spiral Hose – Product Download
MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
inch | mm | mm | mm | mm | mm | mm | ||||
GSJF30-21-16¥ | 16GS-16FJX30M | 7347-73055 | 1 | 25.4 | 1 5/16-12 | 1 1/2 | 1 1/2 | 27.0 | 153.0 | 96.6 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
Model | GSJF30-21-16 |
---|
