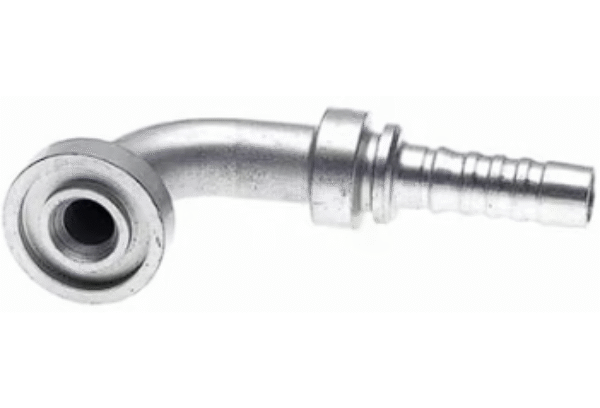

Code 62 O-Ring Flange – 90° Bent Tube – Global Spiral
Gates Code 62 O-Ring Flange – 90° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GS6FL90M-08-08 | 8GS-8FLH90M | 1/2 | 12.7 | 1/2 | 31.8 | 40.0 | 88.0 | 50.5 | 7.7 |
| GS6FL90L-08-08¥ | 8GS-8FLH90-080 | 1/2 | 12.7 | 1/2 | 31.8 | 80.0 | 88.0 | 50.5 | 7.7 |
| GS6FL90M-12-08 | 8GS-12FLH90M | 1/2 | 12.7 | 3/4 | 41.4 | 58.0 | 88.0 | 50.5 | 8.8 |
| GS6FL90M-08-10¥ | 10GS-8FLH90M | 5/8 | 15.8 | 1/2 | 31.8 | 40.0 | 113.0 | 62.7 | 7.7 |
| GS6FL90M-12-10¥ | 10GS-12FLH90M | 5/8 | 15.8 | 3/4 | 41.4 | 58.0 | 110.0 | 59.7 | 8.8 |
| GS6FL90M-12-12 | 12GS-12FLH90M | 3/4 | 19.1 | 3/4 | 41.4 | 58.0 | 112.0 | 61.0 | 8.8 |
| GS6FL90L-12-12¥ | 12GS-12FLH90-100 | 3/4 | 19.1 | 3/4 | 41.4 | 100.0 | 112.0 | 61.0 | 8.8 |
| GS6FL90XL-12-12¥ | 12GS-12FLH90-122 | 3/4 | 19.1 | 3/4 | 41.4 | 122.0 | 122.0 | 71.0 | 8.8 |
| GS6FL90S-16-12¥ | 12GS-16FLH90S | 3/4 | 19.1 | 1 | 47.8 | 61.0 | 112.0 | 61.0 | 9.5 |
| GS6FL90M-16-12 | 12GS-16FLH90M | 3/4 | 19.1 | 1 | 47.8 | 70.0 | 112.0 | 61.0 | 9.5 |
| GS6FL90L-16-12¥ | 12GS-16FLH90-140 | 3/4 | 19.1 | 1 | 47.8 | 140.0 | 116.0 | 65.0 | 9.5 |
| GS6FL90M-12-16¥ | 16GS-12FLH90M | 1 | 25.4 | 3/4 | 41.4 | 58.0 | 135.0 | 78.6 | 8.8 |
| GS6FL90S-16-16¥ | 16GS-16FLH90S | 1 | 25.4 | 1 | 47.8 | 61.0 | 135.0 | 78.6 | 9.5 |
| GS6FL90M-16-16 | 16GS-16FLH90M | 1 | 25.4 | 1 | 47.8 | 70.0 | 135.0 | 78.6 | 9.5 |
| GS6FL90L-16-16¥ | 16GS-16FLH90-120 | 1 | 25.4 | 1 | 47.8 | 120.0 | 134.0 | 76.8 | 9.5 |
| GS6FL90S-20-16¥ | 16GS-20FLH90S | 1 | 25.4 | 1 1/4 | 54.1 | 68.0 | 134.0 | 76.8 | 10.3 |
| GS6FL90M-20-16 | 16GS-20FLH90M | 1 | 25.4 | 1 1/4 | 54.1 | 90.0 | 134.0 | 76.8 | 10.3 |
| GS6FL90S-24-16¥ | 16GS-24FLH90S | 1 | 25.4 | 1 1/2 | 63.5 | 81.0 | 134.0 | 77.2 | 12.6 |
| GS6FL90S-16-20¥ | 20GS-16FLH90S | 1 1/4 | 31.7 | 1 | 47.8 | 61.0 | 160.0 | 88.9 | 9.5 |
| GS6FL90M-16-20¥ | 20GS-16FLH90M | 1 1/4 | 31.7 | 1 | 47.8 | 70.0 | 160.0 | 88.9 | 9.5 |
| GS6FL90L-16-20¥ | 20GS-16FLH90-100 | 1 1/4 | 31.7 | 1 | 47.8 | 100.0 | 160.0 | 88.9 | 9.5 |
| GS6FL90S-20-20¥ | 20GS-20FLH90-076 | 1 1/4 | 31.7 | 1 1/4 | 54.1 | 76.0 | 165.0 | 93.9 | 10.3 |
| GS6FL90M-20-20 | 20GS-20FLH90M | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 90.0 | 165.0 | 93.9 | 8.0 |
| GS6FL90L-20-20¥ | 20GS-20FLH90-120 | 1 1/4 | 31.7 | 1 1/4 | 54.1 | 120.0 | 165.0 | 93.9 | 10.3 |
| GS6FL90XL-20-20¥ | 20GS-20FLH90-152 | 1 1/4 | 31.7 | 1 1/4 | 54.1 | 152.0 | 165.0 | 93.9 | 10.3 |
| GS6FL90S-24-20¥ | 20GS-24FLH90S | 1 1/4 | 31.7 | 1 1/2 | 63.5 | 81.0 | 165.0 | 93.9 | 12.6 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSP6FL90-24-24 | 24GSP-24FLH90-094 | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 94 | 175.5 | 101.9 | 12.6 |
| GSP6FL90S-32-24 | 24GSP-32FLH90S | 1 1/2 | 38.1 | 2 | 63.5 | 120 | 176.8 | 103.2 | 12.6 |
| GSP6FL90M-32-32 | 32GSP-32FLH90M | 2 | 50.8 | 2 | 79.5 | 138 | 221.4 | 129.4 | 12.6 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSM6FL90-24-24 | 24GSM-24FLH90-094 | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 94 | 214 | 118.9 | 12.6 |
| GSM6FL90L-24-24 | 24GSM-24FLH90-150 | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 150 | 244 | 118.9 | 12.6 |
| GSM6FL90-32-24 | 24GSM-32FLH90S | 1 1/2 | 38.1 | 2 | 71.4 | 120 | 214 | 118.9 | 12.6 |
| GSM6FL90S-32-32 | 32GSM-32FLH90S | 2 | 50.8 | 2 | 79.5 | 120 | 264 | 150.5 | 12.6 |
| GSM6FL90M-32-32 | 32GSM-32FLH90M | 2 | 50.8 | 2 | 79.5 | 138 | 264 | 150.5 | 12.6 |
| GSM6FL90L-32-32 | 32GSM-32FLH90-159 | 2 | 50.8 | 2 | 79.5 | 159 | 264 | 150.4 | 12.6 |
¥ Coupling pricing & availability on request.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS6FL90M-08-08, GS6FL90L-08-08, GS6FL90M-12-08, GS6FL90M-08-10, GS6FL90M-12-10, GS6FL90M-12-12, GS6FL90L-12-12, GS6FL90XL-12-12, GS6FL90S-16-12, GS6FL90M-16-12, GS6FL90L-16-12, GS6FL90M-12-16, GS6FL90S-16-16, GS6FL90M-16-16, GS6FL90L-16-16, GS6FL90S-20-16, GS6FL90M-20-16, GS6FL90S-24-16, GS6FL90S-16-20, GS6FL90M-16-20, GS6FL90L-16-20, GS6FL90S-20-20, GS6FL90M-20-20, GS6FL90L-20-20, GS6FL90XL-20-20, GS6FL90S-24-20, GSP6FL90-24-24, GSP6FL90S-32-24, GSP6FL90M-32-32, GSM6FL90-24-24, GSM6FL90L-24-24, GSM6FL90-32-24, GSM6FL90S-32-32, GSM6FL90M-32-32, GSM6FL90L-32-32 |
|---|
