BSPP Female O-Ring Swivel – 45° Bent Tube – Megacrimp
$22.100 – $829.651 ex GST
Description

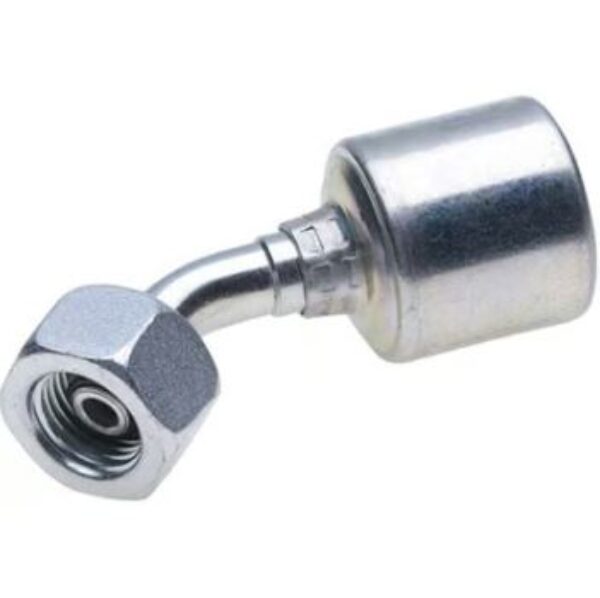

BSPP Female BSPP O-Ring Swivel – 45° Bent Tube – Megacrimp
Gates BSPP Female BSPP O-Ring Swivel – 45° hhose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| MCBF45-04-04 | 4G-4FBSPORX45 | 1/4 | 6.4 | 1/4” – 19 | 57.2 | 31.1 | 11.6 | 19.0 |
| MCBF45-06-04 | 4G-6FBSPORX45 | 1/4 | 6.4 | 3/8” – 19 | 63.2 | 37.1 | 17.7 | 22.0 |
| MCBF45-06-05¥ | 5G-6FBSPORX45 | 5/16 | 7.9 | 3/8” – 19 | 64.1 | 36.1 | 15.4 | 22.0 |
| MCBF45-06-06 | 6G-6FBSPORX45 | 3/8 | 9.5 | 3/8” – 19 | 67.1 | 39.1 | 15.4 | 22.0 |
| MCBF45-08-06¥ | 6G-8FBSPORX45 | 3/8 | 9.5 | 1/2” – 14 | 71.0 | 43.0 | 19.3 | 27.0 |
| MCBF45-08-08 | 8G-8FBSPORX45 | 1/2 | 12.7 | 1/2” – 14 | 81.5 | 44.0 | 17.0 | 27.0 |
| MCBF45-10-08¥ | 8G-10FBSPORX45 | 1/2 | 12.7 | 5/8” – 14 | 91.0 | 53.5 | 23.0 | 30.0 |
| MCBF45-10-10 | 10G-10FBSPORX45 | 5/8 | 15.9 | 5/8” – 14 | 89.6 | 52.1 | 21.3 | 30.0 |
| MCBF45-12-10¥ | 10G-12FBSPORX45 | 5/8 | 15.9 | 3/4” – 14 | 99.5 | 62.0 | 31.2 | 32.0 |
| MCBF45-12-12 | 12G-12FBSPORX45 | 3/4 | 19.0 | 3/4” – 14 | 115.4 | 64.4 | 28.3 | 32.0 |
| MCBF45-16-16 | 16G-16FBSPORX45 | 1 | 25.4 | 1” – 11 | 135.6 | 78.8 | 30.9 | 41.0 |
| MCBF45-20-20 | 20G-20FBSPORX45 | 1-1/4 | 31.8 | 1.1/4” – 11 | 152.4 | 93.4 | 37.5 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | H1 | H2 | T | L | C | |
| inch | mm | Inch | Inch | mm | mm | mm | |||
| GSPBF45-24-24 | 24GSP-24FBSPORX45 | 1 1/2 | 38.1 | 1 1/2-11 | 2.17 | 49.7 | 214.5 | 140.8 | |
| GSPBF45-32-32 | 32GSP-32FBSPORX45 | 2 | 50.8 | 2-11 | 2.76 | 62.5 | 276.1 | 184.1 | |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCBF45-04-04, MCBF45-06-04, MCBF45-06-05, MCBF45-06-06, MCBF45-08-06, MCBF45-08-08, MCBF45-10-08, MCBF45-10-10, MCBF45-12-10, MCBF45-12-12, MCBF45-16-16, MCBF45-20-20, GSPBF45-24-24, GSPBF45-32-32 |
|---|
