Tilt Saddles
Description
Tilt Saddles – ZTT
ZTT Tilt Saddles reduces the effects of any possible off-centred load.

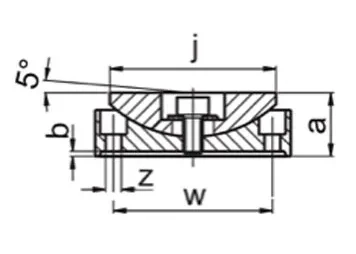

| MODEL | FOR USE WITH | a | b | c | j | u | z | w | kg |
| mm | mm | mm | mm | mm | mm | mm | |||
| ZTT10 | CMI10N25 | 16 | 1 | – | 34 | – | 5.5 | 24 | 0.1 |
| ZTT11 | CMI10N # # # | 9 | 21 | 12 | 34 | M24x2 | – | – | 0.1 |
| ZTT11W | CMI10W # # # | 9 | 21 | 12 | 34 | 1’’ – 8 | – | – | 0.1 |
| ZTT31 | CMI25N # # # | 16 | 30 | 14 | 53 | M32x2 | – | – | 0.3 |
| CMI30N210 | |||||||||
| ZTT31W | CMI25W # # # | 16 | 30 | 14 | 53 | 1 ½’’ – 16 | – | – | 0.3 |
| ZTT51 | CMI50 # # # # | 18 | 26 | 8 | 68 | 65 | 5.5 | 45 | 0.8 |
| ZTT101 | CMI100 # # # # | 22 | 32 | 10 | 88 | 85 | 6.5 | 65 | 1.6 |
Contact us for further technical information.
Europress, founded in 1919, is a worldwide leader, manufacturer and marketer of high-pressure hydraulic equipment. We continuously improve our services to offer you better options. Our effort in following the most advanced technology innovations in terms of quality, safety, and reliability are certified since 1996, year in which we have been awarded with the ISO 9001 Quality System Certification , and more recently in 2008 with the ISO 14001 Quality System Certification .
Additional information
| Model | ZTT10, ZTT11, ZTT11W, ZTT31, ZTT31W, ZTT51, ZTT101 |
|---|
