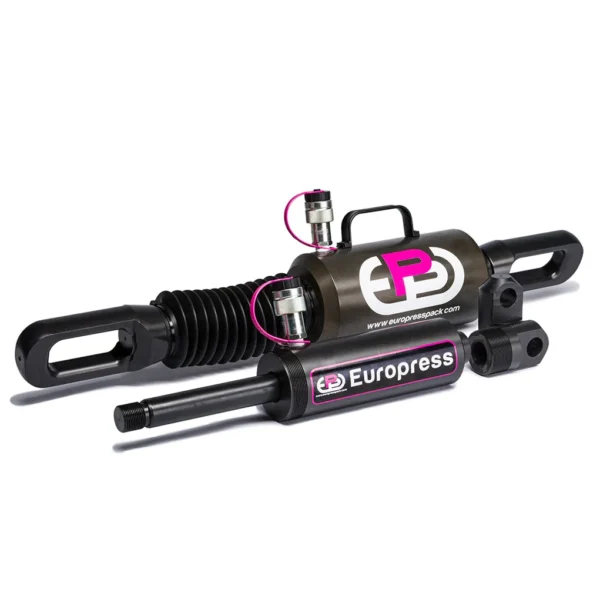

Single Acting – Pull Cylinder – Aluminium
Description
Single Acting – Spring Return – Pull Cylinder – Aluminium
Force: 10-60 t
Stroke: 150 mm
Max Working Pressure: 700 Bar
Features
They are made entirely of aluminium (except for the stem and eyelets) and are characterised by an anodized surface treatment. They are equipped with bellows to protect the stems and, in models starting from 30 tonnes, with a carrying handle.
Accessories
ZAS set of eyelets for series N cylinders
The CMT cylinders, accompanied by the PN pumps, form a handy, simple, and efficient set.
Operational Areas
Range in steel (CMT###N###).
Their use is suggested in situations where it is necessary to close small masses in assemblies, in buildings, and in laboratories to test the resistance of materials.
Fields of use
They are specifically used in shipbuilding and heavy metal carpentry to join plates, sheets, or prefabricated elements that need to be welded.
Accessories
- ZAS set of eyelets for series N cylinders
The CMT cylinders, accompanied by the PN pumps, form a handy, simple, and efficient set.
Selection Chart
| PULLING FORCE | STROKE | CYLINDER TRACTION AREA | OIL VOLUME | MODEL | HEIGHT CLOSED | EXTENDED HEIGHT | Ø EXTERNAL | Ø PISTON | Ø STEM | EYELET WIDTH | SLOT WIDTH | EYE THICKNESS | EYE HEAD THICKNESS | SLOT LENGTH | WEIGHT |
| t*kN | mm | cm² | cm3 | Amm | Bmm | Dmm | Emm | Fmm | D1mm | E1mm | F1mm | K1mm | P1mm | kg | |
|
10 |
150 | 15.7 | 236 | CMT10L150 | 526 | 676 | 75 | 55 | 32 | 55 | 32 | 20 | 20 | 100 | 4.4 |
|
30 |
47.7 | 716 | CMT30L150 | 612 | 762 | 128 | 90 | 45 | 90 | 44 | 34 | 38 | 100 | 13.2 | |
|
60 |
79.9 | 1199 | CMT60L150 | 734 | 884 | 168 | 120 | 65 | 107 | 61 | 40 | 50 | 140 | 33.5 |
Contact us for further technical information.
Europress, founded in 1919, is a worldwide leader, manufacturer and marketer of high-pressure hydraulic equipment. We continuously improve our services to offer you better options. Our effort in following the most advanced technology innovations in terms of quality, safety, and reliability are certified since 1996, year in which we have been awarded with the ISO 9001 Quality System Certification , and more recently in 2008 with the ISO 14001 Quality System Certification .
Additional information
| Model | CMT10L150, CMT30L150, CMT60L150 |
|---|
