Return Line Filters RTF
$41.796 – $418.158 ex GST
Description

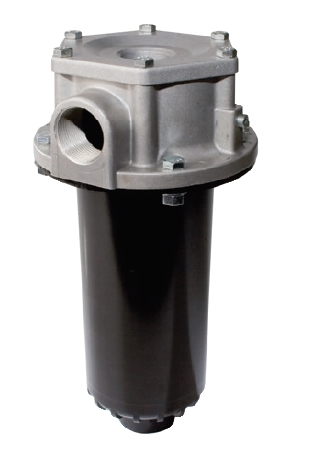

Stauff Return Line Filters RTF – Tank Top
STAUFF RTF Return-Line Filters are designed as tank top filters with a maximum operating pressure of 3.4 bar / 49 PSI.
Standard units are supplied with BSPP threads, 10μm element with integral 1.5 Bar By-Pass.
Optional clogging indicators and replacments elements are available.
| Item No. | Designation | Inlet Thread | Micron |
| 1010021588 | RTF-10-D-10-B-G08 | 1/2 BSPP | 10μm |
| 1010021589 | RTF-15-D-10-B-G08 | 1/2 BSPP | 10μm |
| 6100192141 | RTF-25-D-10-B-G12 | 3/4 BSPP | 10μm |
| 1010021590 | RTF-25-D-10-B-G16 | 1 BSPP | 10μm |
| 6100192142 | RTF-50-D-10-B-G16 | 1 BSPP | 10μm |
| 1010021696 | RTF-50-D-10-B-G20 | 1-1/4 BSPP | 10μm |
| 1010021697 | RTF-80-D-10-B-G24 | 1-1/2 BSPP | 10μm |
| 1010021698 | RTF-90-D-10-B-G32 | 2 BSPP | 10μm |
| 1010002341 | SPG-C-040-00004-02-P-T02-402923 | Visual indicator | N/A |
| 1910000459 | Limit-Switch-G42NO-S-B02-B1.3 | Electrical indicator | N/A |
| 1910000460 | Limit-Switch-G42NC-S-B02-B1.3 | Electrical indicator | N/A |

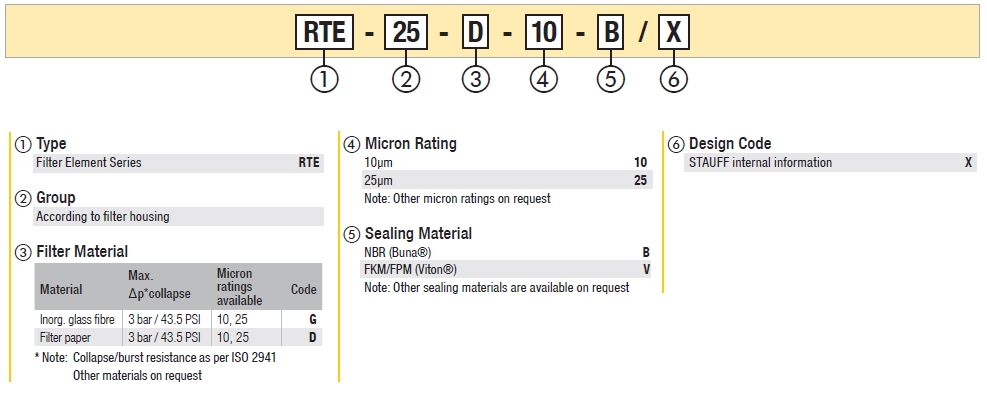

Replacement RTE elements available HERE
Various options are available, CONTACT US or refer to the Stauff Filtration Catalogue for more information.
Technical Data
Construction
Tank Top flange mounting
Materials
Filter head: Aluminium
Filter bowl: Polyamide
Sealings: NBR (Buna-N®) FKM/FPM (Viton®) Other sealing materials are available on request
Port Connections
BSPP
NPT
SAE O-Ring thread
Flow Rating
Up to 95 l/min / 25 US GPM
Operating Pressure
Max. 3.4 bar / 49 PSI
Burst Pressure
Min. 10 bar / 145 PSI
Temperature Range
-25 °C … +95 °C / -13 °F … +203 °F
Filter Elements
Specifications refer to page N134
Media Compatibility
Mineral oils
Other fluids on request
Various options are available, CONTACT US or refer to the Stauff Filtration Catalogue for more information.
Additional information
| Part Number | RTF-10-D-10-B-G08, RTF-15-D-10-B-G08, RTF-25-D-10-B-G12, RTF-25-D-10-B-G16, RTF-50-D-10-B-G16, RTF-50-D-10-B-G20, RTF-80-D-10-B-G24, RTF-90-D-10-B-G32, SPG-C-040-00004-02-P-T02-402923, Limit-Switch-G42NO-S-B02-B1.3, Limit-Switch-G42NC-S-B02-B1.3 |
|---|
