Description

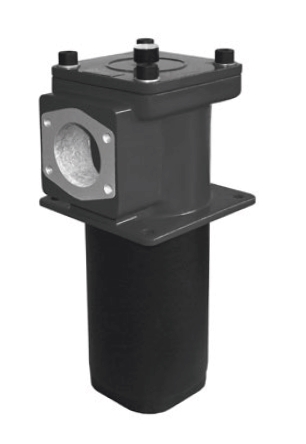

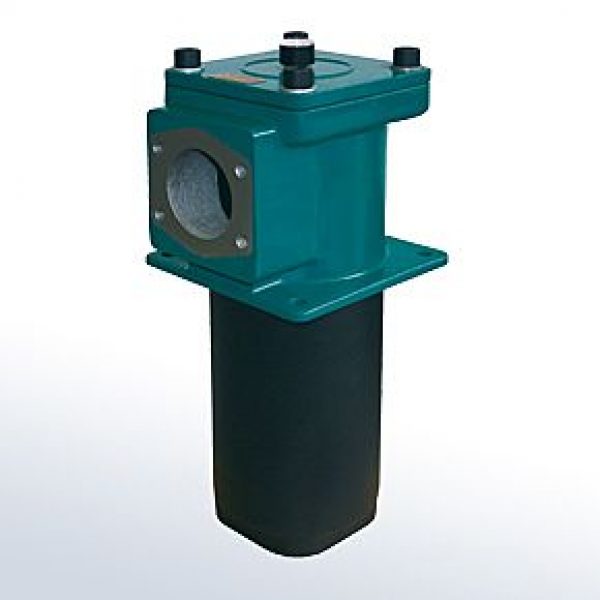

STAUFF Return Line Filters – Type RFS

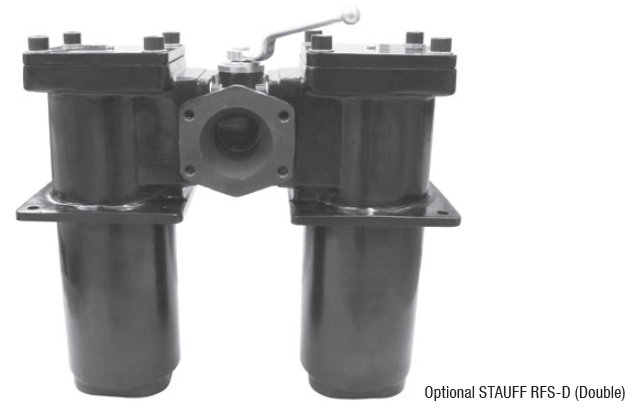

STAUFF RFS and RFS-D Carbon Steel Return-Line Filters are designed as tank top or in-line filters. They are mounted directly on the tank top, and if 100% of the system oil is filtered, they provide
the optimum removal of contaminants from the system. This provides the pump with clean oil therefore reducing contaminant generated wear.

The filter bowl is designed with a connection, threaded or flanged, for extending the return oil beneath the surface thus preventing the entrainment of air. A high efficiency of contaminant removal is assured by using STAUFF RE Replacement Filter Elements. The high dirt-hold capacity of STAUFF Elements ensures a long service life and as a result reduced maintenance costs.

Quoted units are come with 10μm Inorganic Glass Fibre elements, refer to the Stauff Filtration Catalogue for full specifacations.

Many other filter element and porting options available, contact us for specific pricing.

Replacment RE filter elements available HERE

Options and Accessories

Valve (available as an option)
▪ Bypass valve

Clogging Indicator (available as an option)

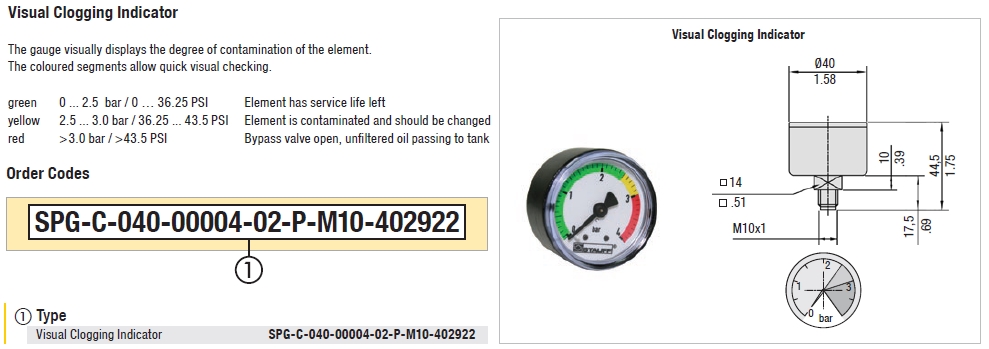

▪ Visual clogging indicator or electrical clogging switch

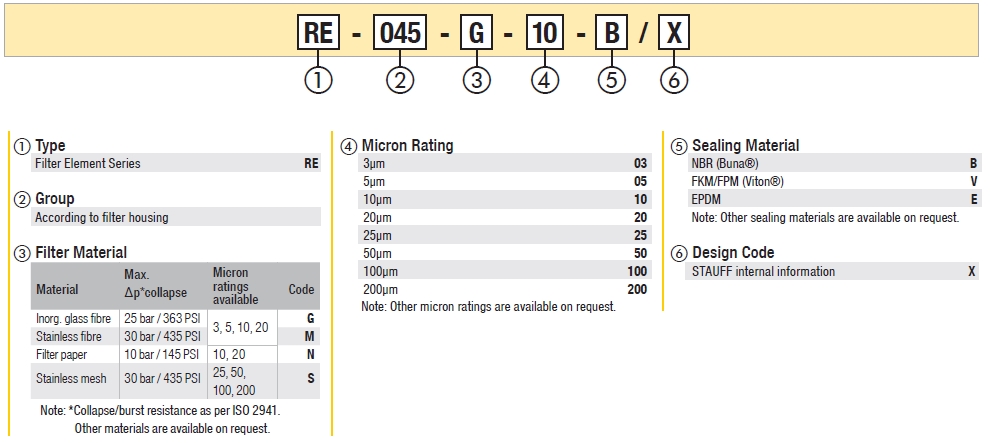

Filter Elements
▪ Filter elements of RE series
