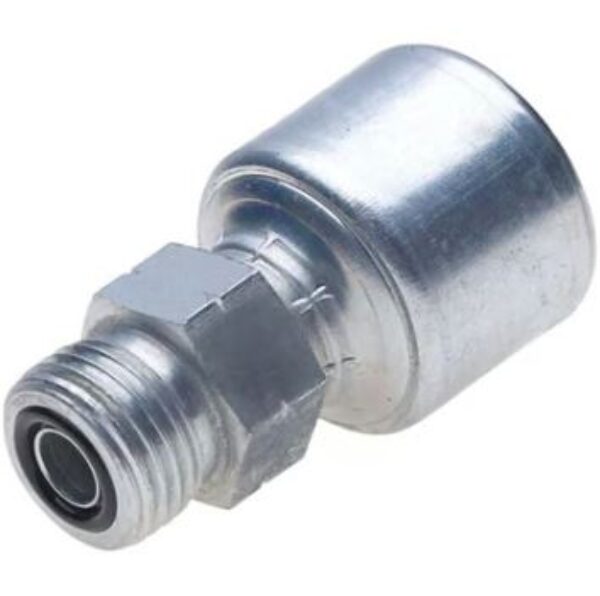

ORFS Male Flat-Face O-Ring – Megacrimp
Gates ORFS Male Flat-Face O-Ring hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
SAE J1453 Captive O-Ring Groove for Improved O-Ring Retension
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Gates Part Number | Hose ID | Thread size | H1 | L | C | |
| inch | mm | mm | mm | mm | ||||
| MCORFM-09-04 | 4G-4MFFOR | 7104-16045 | 1/4 | 6.4 | 9/16-18 | 17.0 | 52.5 | 26.5 |
| MCORFM-11-04¥ | 4G-6MFFOR | 7104-16055 | 1/4 | 6.4 | 11/16-16 | 19.0 | 54.0 | 28.0 |
| MCORFM-11-06 | 6G-6MFFOR | 7104-16075 | 3/8 | 9.5 | 11/16-16 | 19.0 | 56.0 | 28.1 |
| MCORFM-13-06¥ | 6G-8MFFOR | 7104-16085 | 3/8 | 9.5 | 13/16-16 | 22.0 | 59.0 | 31.1 |
| MCORFM-16-06¥ | 6G-10MFFOR | 7104-16095 | 3/8 | 9.5 | 1-14 | 27.0 | 64.0 | 36.1 |
| MCORFM-13-08 | 8G-8MFFOR | 7104-16115 | 1/2 | 12.7 | 13/16-16 | 22.0 | 68.2 | 30.7 |
| MCORFM-16-08¥ | 8G-10MFFOR | 7104-16125 | 1/2 | 12.7 | 1-14 | 27.0 | 73.0 | 35.5 |
| MCORFM-16-10 | 10G-10MFFOR | 7104-16155 | 5/8 | 15.8 | 1-14 | 27.0 | 68.5 | 31.0 |
| MCORFM-19-10¥ | 10G-12MFFOR | 7104-16165 | 5/8 | 15.8 | 1 3/16-12 | 32.0 | 72.0 | 34.5 |
| MCORFM-19-12 | 12G-12MFFOR | 7104-16185 | 3/4 | 19.0 | 1 3/16-12 | 32.0 | 90.0 | 39.0 |
| MCORFM-23-12¥ | 12G-16MFFOR | 7104-16195 | 3/4 | 19.0 | 1 7/16-12 | 41.0 | 95.0 | 44.0 |
| MCORFM-23-16 | 16G-16MFFOR | 7104-16215 | 1 | 25.4 | 1 7/16-12 | 41.0 | 102.0 | 45.2 |
| MCORFM-27-16¥ | 16G-20MFFOR | 7104-16225 | 1 | 25.4 | 1 11/16-12 | 46.0 | 105.0 | 48.2 |
| MCORFM-27-20 | 20G-20MFFOR | 7104-16245 | 1 1/4 | 31.7 | 1 11/16-12 | 46.0 | 109.0 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCORFM-09-04, MCORFM-11-04, MCORFM-11-06, MCORFM-13-06, MCORFM-16-06, MCORFM-13-08, MCORFM-16-08, MCORFM-16-10, MCORFM-19-10, MCORFM-19-12, MCORFM-23-12, MCORFM-23-16, MCORFM-27-16, MCORFM-27-20 |
|---|
