ORFS Female Swivel – 45° – Global Spiral
$63.827 – $371.901 ex GST
Description

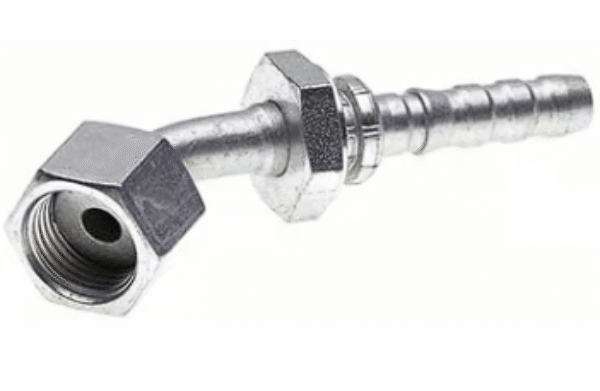

ORFS Female Swivel – 45° – Global Spiral
Gates Global Spiral ORFS Female Swivel – 45° hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
SAE J1453 O-Ring Face Seal. Metric Hex per ISO Draft International Standard 12151-1.
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| GSORF45-11-06 | 6GS-6FFORX45S | 7347-31145 | 3/8 | 9.53 | 11/16-16 | 22.0 | 22.0 | 11.0 | 82.0 | 46.2 |
| GSORF45-13-06 | 6GS-8FFORX45S | 7347-31155 | 3/8 | 9.53 | 13/16-16 | 22.0 | 24.0 | 15.0 | 93.0 | 57.2 |
| GSORF45-13-08 | 8GS-8FFORX45S | 7347-31245 | 1/2 | 12.7 | 13/16-16 | 27.0 | 24.0 | 15.0 | 94.0 | 56.5 |
| GSORF45-16-08 | 8GS-10FFORX45S | 7347-31255 | 1/2 | 12.7 | 1-14 | 27.0 | 30.0 | 16.0 | 99.0 | 61.5 |
| GSORF45-16-10 | 10GS-10FFORX45S | 7347-31345 | 5/8 | 15.8 | 1-14 | 30.0 | 30.0 | 16.0 | 111.0 | 60.7 |
| GSORF45-19-12 | 12GS-12FFORX45S | 7347-31445 | 3/4 | 19.05 | 1 3/16-12 | 32.0 | 36.0 | 21.0 | 125.0 | 74.0 |
| GSORF45-23-12 | 12GS-16FFORX45S | 7347-31465 | 3/4 | 19.05 | 1 7/16-12 | 32.0 | 41.0 | 24.0 | 137.0 | 86.0 |
| GSORF45-23-16 | 16GS-16FFORX45S | 7347-31555 | 1 | 25.4 | 1 7/16-12 | 41.0 | 41.0 | 24.0 | 144.0 | 87.8 |
| GSORF45-27-16 | 16GS-20FFORX45S | 7347-31565 | 1 | 25.4 | 1 11/16-12 | 41.0 | 50.0 | 25.0 | 164.0 | 107.6 |
| GSORF45-27-20 | 20GS-20FFORX45-032 | 7347-76045 | 1 1/4 | 31.7 | 1 11/16-12 | 50.0 | 50.0 | 32.0 | 180.0 | 108.9 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| GSPORF45-32-24 | 24GSP-24FFORX45-036 | 7347-31725 | 1 1/2 | 38.1 | 2-12 | 2.17 | 2.36 | 36 | 206.5 | 132.8 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| GSMORF45-32-24¥ | 24GSM4K-24FFORX45-038 | 7341-02455 | 1 1/2 | 38.1 | 2-12 | 2.17 | 2.36 | 38 | 236.6 | 141.1 |
- GSMORF – 4000PSI MAXIMUM
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GSORF45-11-06, GSORF45-13-06, GSORF45-13-08, GSORF45-16-08, GSORF45-16-10, GSORF45-19-12, GSORF45-23-12, GSORF45-23-16, GSORF45-27-16, GSORF45-27-20, GSPORF45-32-24, GSMORF45-32-24 |
|---|
