MXG4K-XTP Hydraulic Hose
$63.997 – $122.179 ex GST
Description

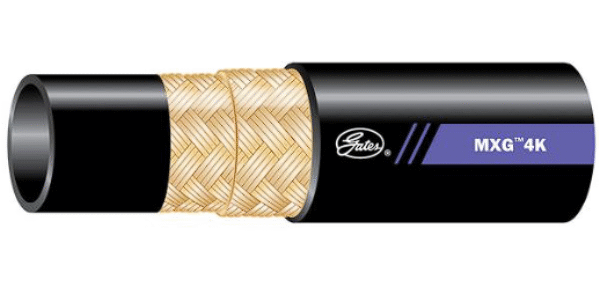

MXG4K-XTP Hydraulic Hose WITH XTRATUFF™ PLUS COVER
MXG4K-XTP Hydraulic Hose LIGHTER. MORE FLEXIBLE. COMPACT. UNIVERSALLY APPLICABLE.
Recommended For: High Pressure hydraulic oil lines. Exceeds performance criteria of ISO 18752 280DC, SAE 100R12, EN856 R12, and ISO 3862 R12; size -16 also rated for EN856 4SP. Also exceeds wire braid spec SAE 100R19.
Tube: Black, oil resistant, synthetic rubber tube.
Reinforcement: Braided high-tensile steel wire reinforcement.
Cover: Black, abrasion resistant, synthetic rubber WITH XTRATUFF™ PLUS COVER
Temperature Range: -40°C to +121°C
Fittings: (see crimp manuals for specifics):
Gates GS GlobalSpiral™ couplings
MXG-XTP – Next generation hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Working pressure (PSI/Bar) | Min. Burst pressure (PSI/Bar) | Min. bend radius (inch/mm) | Approx. bulk carton length (ft/M) | |
| inch | mm | ||||||
| MXG4K-06-XTP | 4678-0001 | 3/8 | 9.5 | 4060 / 280 | 16240 / 1120 | 2.5 / 65 | 330 / 100 |
| MXG4K-08-XTP | 4678-0002 | 1/2 | 12.7 | 4060 / 280 | 16240 / 1120 | 3.5 / 90 | 220 / 67 |
| MXG4K-10-XTP | 4678-0003 | 5/8 | 15.9 | 4060 / 280 | 16240 / 1120 | 3.9 / 100 | 220 / 67 |
| MXG4K-12-XTP | 4678-0004 | 3/4 | 19 | 4060 / 280 | 16240 / 1120 | 4.7 / 120 | 220 / 67 |
| MXG4K-16-XTP | 4678-0005 | 1 | 25.4 | 4060 / 280 | 16240 / 1120 | 5.9 / 150 | 165 / 50 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
FEATURES + BENEFITS
- Proprietary application of materials science and processing technology
- Exceeds performance criteria of ISO 18752 280DC, SAE 100R12, EN856 R12, and ISO 3862 R12; size -16 also rated for EN856 4SP
- For inventory consolidation, also exceeds SAE 100R19
- 1,000,000 cycle impulse life exceeds industry standards (2X spiral and 5X wire braid standards) with GS couplings
- Impulse tested to the same parameters as Gates EFG4K spiral hose (pressure, temperature and bend radius)
- Compact construction with excellent flexibility and lower force-tobend for faster and more ergonomic installation (force-to-bend is 40% better and OD is 8% smaller)
- 30% lighter weight for easier handling and installation
- Gates XtraTuff™ Plus cover comes standard on MXG, providing abrasion and ozone resistance
- Utilizes Gates GS GlobalSpiral™ couplings; compatible with Gates Crimpers
Additional information
| Model | MXG4K-06-XTP, MXG4K-08-XTP, MXG4K-10-XTP, MXG4K-12-XTP, MXG4K-16-XTP |
|---|
