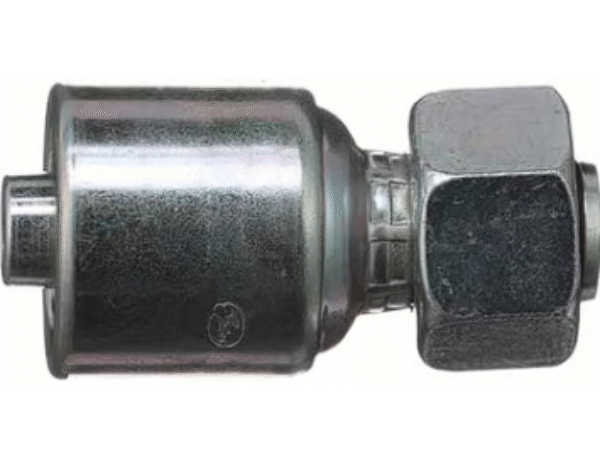

Metric Light Female DIN 24° Cone Swivel – Megacrimp
Gates Metric Light Female DIN 24° Cone Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | A | B | H | |
| inch | mm | mm | mm | mm | |||
| MCLMF-12-04 | 4G-6FDLORX | 1/4 | 6.4 | M12 x 1.5 | 51.8 | 25.8 | 14.0 |
| MCLMF-14-04 | 4G-8FDLORX | 1/4 | 6.4 | M14 x 1.5 | 54.4 | 28.4 | 17.0 |
| MCLMF-16-04 | 4G-10FDLORX | 1/4 | 6.4 | M16 x 1.5 | 55.3 | 29.3 | 19.0 |
| MCLMF-18-04 | 4G-12FDLORX | 1/4 | 6.4 | M18 x 1.5 | 55.7 | 29.7 | 22.0 |
| MCLMF-14-05¥ | 5G-8FDLORX | 5/16 | 7.9 | M14 x 1.5 | 56.4 | 28.4 | 17.0 |
| MCLMF-16-05¥ | 5G-10FDLORX | 5/16 | 7.9 | M16 x 1.5 | 58.0 | 29.7 | 19.0 |
| MCLMF-18-05¥ | 5G-12FDLORX | 5/16 | 7.9 | M18 x 1.5 | 58.0 | 29.9 | 22.0 |
| MCLMF-16-06 | 6G-10FDLORX | 3/8 | 9.5 | M16 x 1.5 | 57.1 | 29.2 | 19.0 |
| MCLMF-18-06 | 6G-12FDLORX | 3/8 | 9.5 | M18 x 1.5 | 57.8 | 29.9 | 22.0 |
| MCLMF-20-06 | 6G-14FDLORX | 3/8 | 9.5 | M20 x 1.5 | 60.4 | 32.5 | 24.0 |
| MCLMF-22-06 | 6G-15FDLORX | 3/8 | 9.5 | M22 x 1.5 | 56.7 | 28.8 | 27.0 |
| MCLMF-18-08 | 8G-12FDLORX | 1/2 | 12.7 | M18 x 1.5 | 70.2 | 32.7 | 22.0 |
| MCLMF-22-08 | 8G-15FDLORX | 1/2 | 12.7 | M22 x 1.5 | 66.8 | 29.3 | 27.0 |
| MCLMF-26-08 | 8G-18FDLORX | 1/2 | 12.7 | M26 x 1.5 | 67.9 | 30.4 | 32.0 |
| MCLMF-26-10 | 10G-18FDLORX | 5/8 | 15.9 | M26 x 1.5 | 67.8 | 30.3 | 32.0 |
| MCLMF-26-12 | 12G-18FDLORX | 3/4 | 19.0 | M26 x 1.5 | 81.0 | 30.0 | 32.0 |
| MCLMF-30-12 | 12G-22FDLORX | 3/4 | 19.0 | M30 x 2.0 | 83.3 | 32.3 | 36.0 |
| MCLMF-36-16 | 16G-28FDLORX | 1 | 25.4 | M36 x 2.0 | 93.5 | 36.7 | 41.0 |
| MCLMF-45-20 | 20G-35FDLORX | 1-1/4 | 31.8 | M45 x 2.0 | 103.1 | 44.1 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCLMF-12-04, MCLMF-14-04, MCLMF-16-04, MCLMF-18-04, MCLMF-14-05, MCLMF-16-05, MCLMF-18-05, MCLMF-16-06, MCLMF-18-06, MCLMF-20-06, MCLMF-22-06, MCLMF-18-08, MCLMF-22-08, MCLMF-26-08, MCLMF-26-10, MCLMF-26-12, MCLMF-30-12, MCLMF-36-16, MCLMF-45-20 |
|---|
