Metric Light Female DIN 24° Cone Swivel – 45° Bent Tube – Megacrimp

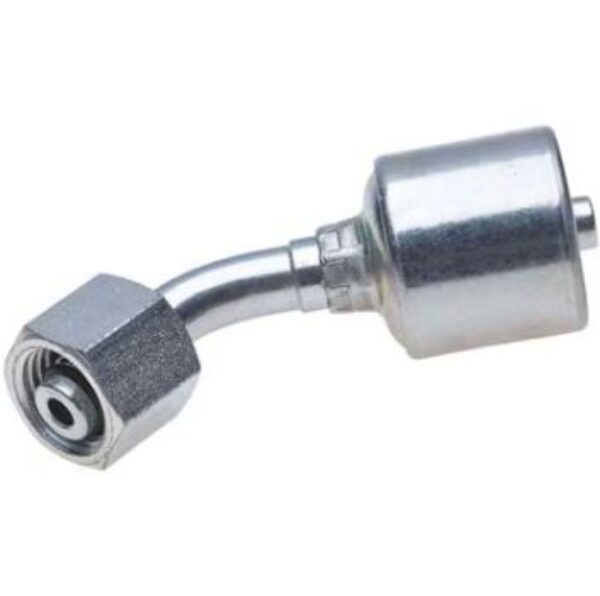

Gates Metric Light Female DIN 24° Cone Swivel – 45° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| MCLMF45-12-04 | 4G-6FDLORX45 | 1/4 | 6.4 | M12 x 1.5 | 65.3 | 39.5 | 16.9 | 14.0 |
| MCLMF45-14-04 | 4G-8FDLORX45 | 1/4 | 6.4 | M14 x 1.5 | 62.6 | 36.5 | 16.2 | 17.0 |
| MCLMF45-16-04 | 4G-10FDLORX45 | 1/4 | 6.4 | M16 x 1.5 | 64.4 | 38.3 | 17.9 | 19.0 |
| MCLMF45-18-04 | 4G-12FDLORX45 | 1/4 | 6.4 | M18 x 1.5 | 66.7 | 40.7 | 18.3 | 22.0 |
| MCLMF45-14-05¥ | 5G-8FDLORX45 | 5/16 | 7.9 | M14 x 1.5 | 67.2 | 39.1 | 16.9 | 17.0 |
| MCLMF45-16-05¥ | 5G-10FDLORX45 | 5/16 | 7.9 | M16 x 1.5 | 67.3 | 39.3 | 17.1 | 19.0 |
| MCLMF45-18-05¥ | 5G-12FDLORX45 | 5/16 | 7.9 | M18 x 1.5 | 67.7 | 39.7 | 18.9 | 22.0 |
| MCLMF45-16-06 | 6G-10FDLORX45 | 3/8 | 9.5 | M16 x 1.5 | 68.5 | 40.5 | 18.6 | 19.0 |
| MCLMF45-18-06 | 6G-12FDLORX45 | 3/8 | 9.5 | M18 x 1.5 | 68.8 | 40.9 | 18.9 | 22.0 |
| MCLMF45-22-06 | 6G-15FDLORX45 | 3/8 | 9.5 | M22 x 1.5 | 72.3 | 44.4 | 22.5 | 27.0 |
| MCLMF45-18-08 | 8G-12FDLORX45 | 1/2 | 12.7 | M18 x 1.5 | 92.9 | 55.4 | 29.7 | 22.0 |
| MCLMF45-22-08 | 8G-15FDLORX45 | 1/2 | 12.7 | M22 x 1.5 | 84.6 | 47.1 | 20.2 | 27.0 |
| MCLMF45-26-08 | 8G-18FDLORX45 | 1/2 | 12.7 | M26 x 1.5 | 94.9 | 57.2 | 26.9 | 32.0 |
| MCLMF45-26-10 | 10G-18FDLORX45 | 5/8 | 15.9 | M26 x 1.5 | 93.5 | 56.0 | 24.8 | 32.0 |
| MCLMF45-30-12 | 12G-22FDLORX45 | 3/4 | 19.0 | M30 x 2.0 | 117.1 | 66.1 | 29.8 | 36.0 |
| MCLMF45-36-16 | 16G-28FDLORX45 | 1 | 25.4 | M36 x 2.0 | 135.4 | 78.8 | 30.9 | 41.0 |
| MCLMF45-45-20 | 20G-35FDLORX45 | 1-1/4 | 31.8 | M45 x 2.0 | 152.4 | 93.4 | 37.5 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCLMF45-12-04, MCLMF45-14-04, MCLMF45-16-04, MCLMF45-18-04, MCLMF45-14-05, MCLMF45-16-05, MCLMF45-18-05, MCLMF45-16-06, MCLMF45-18-06, MCLMF45-22-06, MCLMF45-18-08, MCLMF45-22-08, MCLMF45-26-08, MCLMF45-26-10, MCLMF45-30-12, MCLMF45-36-16, MCLMF45-45-20 |
|---|
