Metric Heavy Female DIN 24° Cone Swivel – Megacrimp
$16.176 – $243.262 ex GST
Description
Metric Heavy Female DIN 24° Cone Swivel – Megacrimp

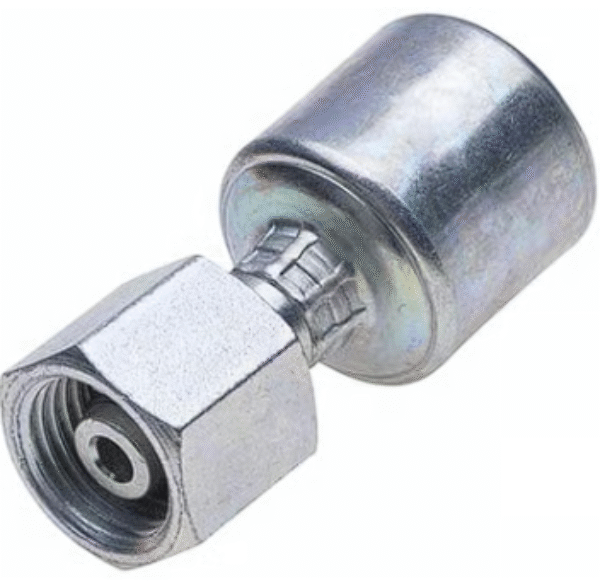

Gates Metric Heavy Female DIN 24° Cone Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | A | B | H | |
| inch | mm | mm | mm | mm | |||
| MCHMF-14-04¥ | 4G-6FDHORX | 1/4 | 6.4 | M14 x 1.5 | 51.8 | 25.8 | 17.0 |
| MCHMF-16-04 | 4G-8FDHORX | 1/4 | 6.4 | M16 x 1.5 | 54.4 | 28.4 | 19.0 |
| MCHMF-18-04 | 4G-10FDHORX | 1/4 | 6.4 | M18 x 1.5 | 55.3 | 29.3 | 22.0 |
| MCHMF-20-04¥ | 4G-12FDHORX | 1/4 | 6.4 | M20 x 1.5 | 55.7 | 29.7 | 24.0 |
| MCHMF-18-05¥ | 5G-10FDHORX | 5/16 | 7.9 | M18 x 1.5 | 58.0 | 29.9 | 22.0 |
| MCHMF-20-05¥ | 5G-12FDHORX | 5/16 | 7.9 | M20 x 1.5 | 58.0 | 29.9 | 24.0 |
| MCHMF-18-06¥ | 6G-10FDHORX | 3/8 | 9.5 | M18 x 1.5 | 57.1 | 29.2 | 22.0 |
| MCHMF-20-06 | 6G-12FDHORX | 3/8 | 9.5 | M20 x 1.5 | 57.8 | 29.9 | 24.0 |
| MCHMF-22-06 | 6G-14FDHORX | 3/8 | 9.5 | M22 x 1.5 | 60.4 | 32.5 | 27.0 |
| MCHMF-20-08¥ | 8G-12FDHORX | 1/2 | 12.7 | M20 x 1.5 | 70.2 | 32.7 | 24.0 |
| MCHMF-24-08 | 8G-16FDHORX | 1/2 | 12.7 | M24 x 1.5 | 71.1 | 33.6 | 30.0 |
| MCHMF-30-08¥ | 8G-20FDHORX | 1/2 | 12.7 | M30 x 2.0 | 75.5 | 38.0 | 36.0 |
| MCHMF-24-10¥ | 10G-16FDHORX | 5/8 | 15.9 | M24 x 1.5 | 71.9 | 34.4 | 30.0 |
| MCHMF-30-10 | 10G-20FDHORX | 5/8 | 15.9 | M30 x 2.0 | 75.7 | 38.2 | 36.0 |
| MCHMF-30-12 | 12G-20FDHORX | 3/4 | 19.0 | M30 x 2.0 | 88.5 | 37.5 | 36.0 |
| MCHMF-36-12 | 12G-25FDHORX | 3/4 | 19.0 | M36 x 2.0 | 93.6 | 42.6 | 46.0 |
| MCHMF-36-16 | 16G-25FDHORX | 1 | 25.4 | M36 x 2.0 | 102.5 | 45.7 | 46.0 |
| MCHMF-42-16 | 16G-30FDHORX | 1 | 25.4 | M42 x 2.0 | 106.0 | 49.2 | 50.0 |
| MCHMF-52-20¥ | 20G-38FDHORX | 1-1/4 | 31.8 | M52 x 2.0 | 116.8 | 57.8 | 60.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCHMF-14-04, MCHMF-16-04, MCHMF-18-04, MCHMF-20-04, MCHMF-18-05, MCHMF-20-05, MCHMF-18-06, MCHMF-20-06, MCHMF-22-06, MCHMF-20-08, MCHMF-24-08, MCHMF-30-08, MCHMF-24-10, MCHMF-30-10, MCHMF-30-12, MCHMF-36-12, MCHMF-36-16, MCHMF-42-16, MCHMF-52-20 |
|---|
