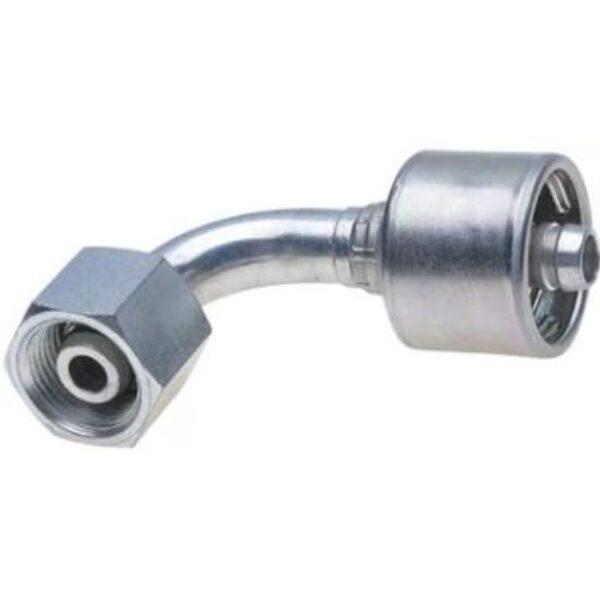

Metric Heavy Female DIN 24° Cone Swivel – 90° Bent Tube – Megacrimp
Gates Metric Heavy Female DIN 24° Cone Swivel – 90° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| MCHMF90-16-04 | 4G-8FDHORX90 | 1/4 | 6.4 | M16 x 1.5 | 57.5 | 31.5 | 35.0 | 19.0 |
| MCHMF90-18-04 | 4G-10FDHORX90 | 1/4 | 6.4 | M18 x 1.5 | 57.5 | 31.5 | 36.5 | 22.0 |
| MCHMF90-20-04¥ | 4G-12FDHORX90 | 1/4 | 6.4 | M20 x 1.5 | 59.5 | 33.5 | 37.0 | 24.0 |
| MCHMF90-18-05¥ | 5G-10FDHORX90 | 5/16 | 7.9 | M18 x 1.5 | 62.5 | 34.4 | 36.5 | 22.0 |
| MCHMF90-20-05¥ | 5G-12FDHORX90 | 5/16 | 7.9 | M20 x 1.5 | 59.0 | 30.9 | 37.0 | 24.0 |
| MCHMF90-18-06¥ | 6G-10FDHORX90 | 3/8 | 9.5 | M18 x 1.5 | 60.1 | 32.2 | 36.5 | 22.0 |
| MCHMF90-20-06 | 6G-12FDHORX90 | 3/8 | 9.5 | M20 x 1.5 | 60.1 | 32.2 | 37.0 | 24.0 |
| MCHMF90-22-06 | 6G-14FDHORX90 | 3/8 | 9.5 | M22 x 1.5 | 60.1 | 32.2 | 40.0 | 27.0 |
| MCHMF90-24-08 | 8G-16FDHORX90 | 1/2 | 12.7 | M24 x 1.5 | 77.9 | 40.4 | 44.0 | 30.0 |
| MCHMF90-30-10 | 10G-20FDHORX90 | 5/8 | 15.9 | M30 x 2.0 | 84.1 | 46.6 | 51.0 | 36.0 |
| MCHMF90-30-12 | 12G-20FDHORX90 | 3/4 | 19.0 | M30 x 2.0 | 100.3 | 49.3 | 51.0 | 36.0 |
| MCHMF90-36-12 | 12G-25FDHORX90 | 3/4 | 19.0 | M36 x 2.0 | 107.3 | 56.3 | 64.0 | 46.0 |
| MCHMF90-42-16 | 16G-30FDHORX90 | 1 | 25.4 | M42 x 2.0 | 131.1 | 74.3 | 76.0 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
