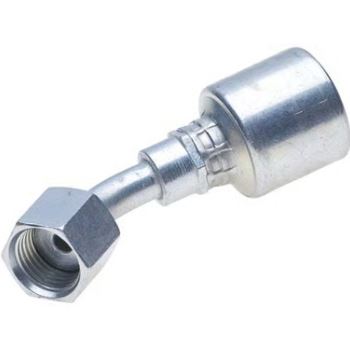

Metric Heavy Female DIN 24° Cone Swivel – 45° Bent Tube – Megacrimp
$27.098 – $210.273 ex GST
Description
Metric Heavy Female DIN 24° Cone Swivel – 45° Bent Tube – Megacrimp
Gates Metric Heavy Female DIN 24° Cone Swivel – 45° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| MCHMF45-16-04¥ | 4G-8FDHORX45 | 1/4 | 6.4 | M16 x 1.5 | 62.6 | 36.5 | 16.2 | 19.0 |
| MCHMF45-18-04 | 4G-10FDHORX45 | 1/4 | 6.4 | M18 x 1.5 | 64.4 | 38.3 | 17.9 | 22.0 |
| MCHMF45-20-04¥ | 4G-12FDHORX45 | 1/4 | 6.4 | M20 x 1.5 | 66.7 | 40.7 | 18.3 | 24.0 |
| MCHMF45-18-05¥ | 5G-10FDHORX45 | 5/16 | 7.9 | M18 x 1.5 | 67.3 | 39.3 | 17.1 | 22.0 |
| MCHMF45-20-05¥ | 5G-12FDHORX45 | 5/16 | 7.9 | M20 x 1.5 | 67.7 | 39.7 | 18.9 | 24.0 |
| MCHMF45-18-06¥ | 6G-10FDHORX45 | 3/8 | 9.5 | M18 x 1.5 | 68.5 | 40.5 | 18.6 | 22.0 |
| MCHMF45-20-06 | 6G-12FDHORX45 | 3/8 | 9.5 | M20 x 1.5 | 68.8 | 40.9 | 18.9 | 24.0 |
| MCHMF45-22-06 | 6G-14FDHORX45 | 3/8 | 9.5 | M22 x 1.5 | 70.9 | 43.0 | 21.0 | 27.0 |
| MCHMF45-24-08 | 8G-16FDHORX45 | 1/2 | 12.7 | M24 x 1.5 | 86.0 | 48.5 | 21.6 | 30.0 |
| MCHMF45-30-10 | 10G-20FDHORX45 | 5/8 | 15.9 | M30 x 2.0 | 93.1 | 55.7 | 24.9 | 36.0 |
| MCHMF45-36-12 | 12G-25FDHORX45 | 3/4 | 19.0 | M36 x 2.0 | 118.6 | 67.6 | 31.2 | 46.0 |
| MCHMF45-42-16 | 16G-30FDHORX45 | 1 | 25.4 | M42 x 2.0 | 139.8 | 83.0 | 35.1 | 50.0 |
| MCHMF45-52-20¥ | 20G-38FDHORX45 | 1-1/4 | 31.8 | M52 x 2.0 | 145.0 | 107.9 | 42.5 | 60.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCHMF45-16-04, MCHMF45-18-04, MCHMF45-20-04, MCHMF45-18-05, MCHMF45-20-05, MCHMF45-18-06, MCHMF45-20-06, MCHMF45-22-06, MCHMF45-24-08, MCHMF45-30-10, MCHMF45-36-12, MCHMF45-42-16, MCHMF45-52-20 |
|---|
