NPT Male Pipe Long Nose – Megacrimp
$20.426 – $54.375 ex GST
Description

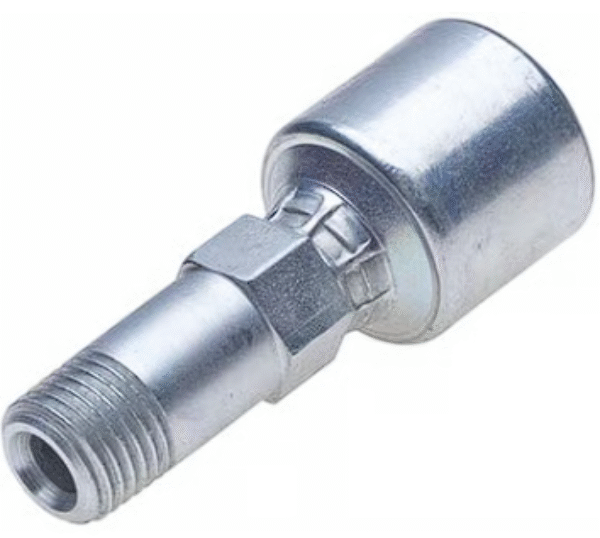

NPT Male Pipe Long Nose – Megacrimp
Gates NPT Male Pipe Long Nose hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
For use with J2AT Jack Hose and special high-pressure applications.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | inch | mm | mm | |||
| MCNML-04-04 | 4G-4MPLN | 1/4 | 6.4 | 1/4-18 | 9/16 | 65.0 | 39.0 |
| MCNML-06-04 | 4G-6MPLN | 1/4 | 6.4 | 3/8-18 | 11/16 | 65.0 | 39.0 |
| MCNML-04-06 | 6G-4MPLN | 3/8 | 9.5 | 1/4-18 | 5/8 | 69.0 | 41.1 |
| MCNML-06-06 | 6G-6MPLN | 3/8 | 9.5 | 3/8-18 | 11/16 | 69.0 | 41.1 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCNML-04-04, MCNML-06-04, MCNML-04-06, MCNML-06-06 |
|---|
