UNO Male O-Ring Boss Swivel – 45° Block – Megacrimp
Description

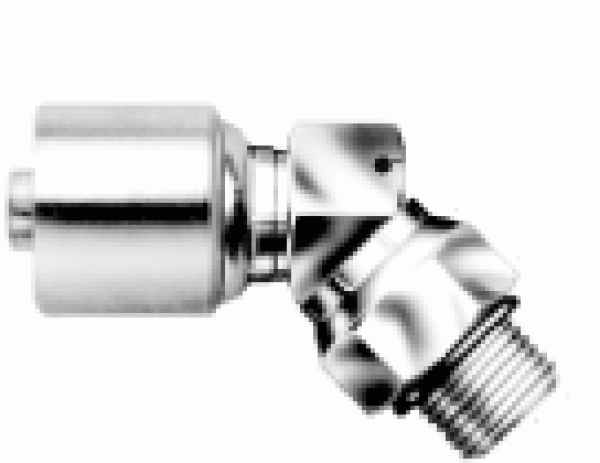

UNO Male O-Ring Boss Swivel – 45° Block – Megacrimp
Gates UNO Male O-Ring Boss Swivel – 45° Block hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
NOT TO BE USED AS A LIVE SWIVEL.
D2 – Fittings for Wire Braid Hose – Product Download

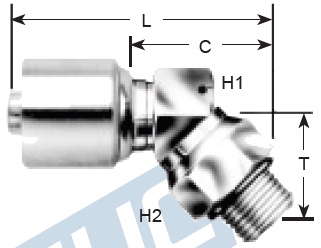

| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | inch | inch | mm | mm | mm | |||
| MCUMS45-09-06¥ | 6G-6MBX45 | 3/8 | 9.5 | -9/16-18 | 3/4 | 7/8 | 27.8 | 79.0 | 51.0 |
| MCUMS45-12-06¥ | 6G-8MBX45 | 3/8 | 9.5 | 3/4-16 | 3/4 | 1 | 26.9 | 78.1 | 50.2 |
| MCUMS45-12-08¥ | 8G-8MBX45 | 1/2 | 12.7 | 3/4-16 | 1 | 1 | 28.4 | 77.2 | 39.7 |
| MCUMS45-14-08¥ | 8G-10MBX45 | 1/2 | 12.7 | 7/8-14 | 1 | 1 | 29.5 | 78.3 | 40.8 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCUMS45-09-06, MCUMS45-12-06, MCUMS45-12-08, MCUMS45-14-08 |
|---|
