UNO Male O-Ring Boss Adaptor-less Swivel – 90° Bent Tube – Megacrimp
Description
UNO Male O-Ring Boss Adaptor-less Swivel – 90° Bent Tube – Megacrimp
Gates UNO Male O-Ring Boss Adaptor-less Swivel – 90° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download

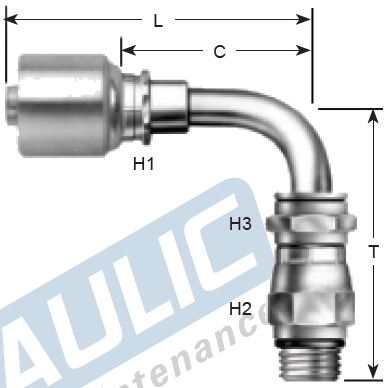

| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | H3 | T | L | C | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| MCUMA90-07-04-¥ | 4G-4MBAX90S | 1/4 | 6.4 | 7/16-20 | 1/2 | 17.0 | 17.0 | 59.0 | 68.0 | 42.0 |
| MCUMA90L-07-04-¥ | 4G-4MBAX90L | 1/4 | 6.4 | 7/16-20 | 1/2 | 17.0 | 17.0 | 85.0 | 61.0 | 35.0 |
| MCUMA90-09-06¥ | 6G-6MBAX90S | 3/8 | 9.5 | 9/16-18 | 5/8 | 22.0 | 22.0 | 66.0 | 78.0 | 50.1 |
| MCUMA90-12-06¥ | 6G-8MBAX90S | 3/8 | 9.5 | 3/4-16 | 5/8 | 22.0 | 22.0 | 66.0 | 78.0 | 50.1 |
| MCUMA90L-09-06¥ | 6G-6MBAX90L | 3/8 | 9.5 | 9/16-18 | 5/8 | 22.0 | 22.0 | 96.0 | 70.0 | 42.1 |
| MCUMA90-12-08¥ | 8G-8MBAX90S | 1/2 | 12.7 | 3/4-16 | 13/16 | 24.0 | 24.0 | 77.0 | 96.5 | 59.0 |
| MCUMA90L-12-08¥ | 8G-8MBAX90L | 1/2 | 12.7 | 3/4-16 | 13/16 | 24.0 | 24.0 | 112.0 | 87.5 | 50.0 |
| MCUMA90-14-10¥ | 10G-10MBAX90S | 5/8 | 15.8 | 7/8-14 | 15/16 | 30.0 | 30.0 | 86.0 | 106.5 | 69.0 |
| MCUMA90L-14-10¥ | 10G-10MBAX90L | 5/8 | 15.8 | 7/8-14 | 15/16 | 30.0 | 30.0 | 126.0 | 95.5 | 58.0 |
| MCUMA90-17-10¥ | 10G-12MBAX90S | 5/8 | 15.8 | 1 1/16-12 | 15/16 | 36.0 | 36.0 | 97.0 | 114.0 | 77.0 |
| MCUMA90-17-12¥ | 12G-12MBAX90S | 3/4 | 19 | 1 1/16-12 | 1 1/16 | 36.0 | 36.0 | 97.0 | 127.0 | 76.0 |
| MCUMA90L-17-12¥ | 12G-12MBAX90L | 3/4 | 19 | 1 1/16-12 | 1 1/16 | 36.0 | 36.0 | 143.0 | 114.0 | 63.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCUMA90-07-04, MCUMA90L-07-04, MCUMA90-09-06, MCUMA90-12-06, MCUMA90L-09-06, MCUMA90-12-08, MCUMA90L-12-08, MCUMA90-14-10, MCUMA90L-14-10, MCUMA90-17-10, MCUMA90-17-12, MCUMA90L-17-12 |
|---|
