Description
UNO Male O-Ring Boss Adaptor-less Swivel – 45° Bent Tube – Megacrimp
Gates UNO Male O-Ring Boss Adaptor-less Swivel – 45° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download

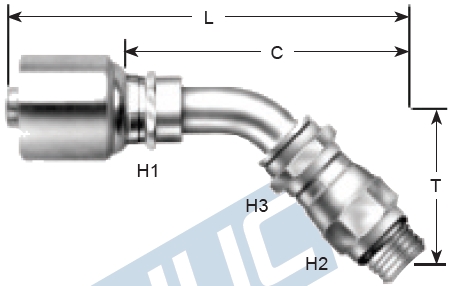

| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | H3 | T | L | C | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| MCUMA45-07-04¥ | 4G-4MBAX45 | 1/4 | 6.4 | 7/16-20 | 11/16 | 17.0 | 17.0 | 36.0 | 90.0 | 64.0 |
| MCUMA45-09-06¥ | 6G-6MBAX45 | 3/8 | 9.5 | 9/16-18 | 5/8 | 22.0 | 22.0 | 40.0 | 101.0 | 73.1 |
| MCUMA45-12-06¥ | 6G-8MBAX45 | 3/8 | 9.5 | 3/4-16 | 5/8 | 22.0 | 22.0 | 40.0 | 101.0 | 73.1 |
| MCUMA45-12-08¥ | 8G-8MBAX45 | 1/2 | 12.7 | 3/4-16 | 13/16 | 24.0 | 24.0 | 46.0 | 122.0 | 84.5 |
| MCUMA45-14-10¥ | 10G-10MBAX45 | 5/8 | 15.8 | 7/8-14 | 15/16 | 30.0 | 30.0 | 50.0 | 129.0 | 92.0 |
| MCUMA45-17-12¥ | 12G-12MBAX45 | 3/4 | 19 | 1 1/16-12 | 1 1/16 | 36.0 | 36.0 | 56.0 | 152.0 | 101.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCUMA45-07-04, MCUMA45-09-06, MCUMA45-12-06, MCUMA45-12-08, MCUMA45-14-10, MCUMA45-17-12 |
|---|
