UNO Male O-Ring Boss Adaptor-less Swivel – Megacrimp

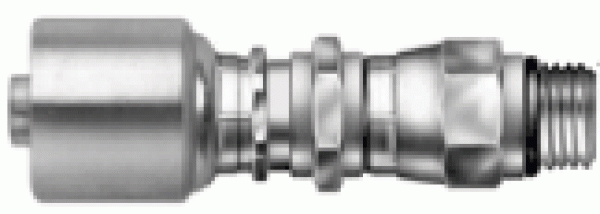

Gates UNO Male O-Ring Boss Adaptor-less Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download

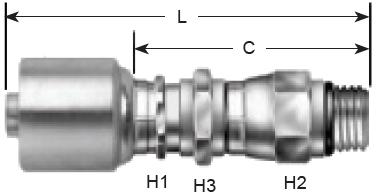

| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | inch | inch | mm | mm | mm | |||
| MCUMA-07-04¥ | 4G-4MBAX | 1/4 | 6.4 | 7/16-20 | 14.0 | 17.0 | 17.0 | 81.0 | 55.0 |
| MCUMA-09-04¥ | 4G-6MBAX | 1/4 | 6.4 | 9/16-18 | 14.0 | 17.0 | 17.0 | 81.0 | 55.0 |
| MCUMA-09-06¥ | 6G-6MBAX | 3/8 | 9.5 | 9/16-18 | 17.0 | 22.0 | 22.0 | 87.5 | 59.6 |
| MCUMA-12-06¥ | 6G-8MBAX | 3/8 | 9.5 | 3/4-16 | 17.0 | 22.0 | 22.0 | 87.0 | 59.1 |
| MCUMA-12-08¥ | 8G-8MBAX | 1/2 | 12.7 | 3/4-16 | 22.0 | 24.0 | 24.0 | 102.0 | 64.5 |
| MCUMA-14-10¥ | 10G-10MBAX | 5/8 | 15.8 | 7/8-14 | 24.0 | 30.0 | 30.0 | 108.0 | 70.5 |
| MCUMA-17-12¥ | 12G-12MBAX | 3/4 | 19 | 1 1/16-12 | 27.0 | 36.0 | 36.0 | 131.0 | 80.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCUMA-07-04, MCUMA-09-04, MCUMA-09-06, MCUMA-12-06, MCUMA-12-08, MCUMA-14-10, MCUMA-17-12 |
|---|
