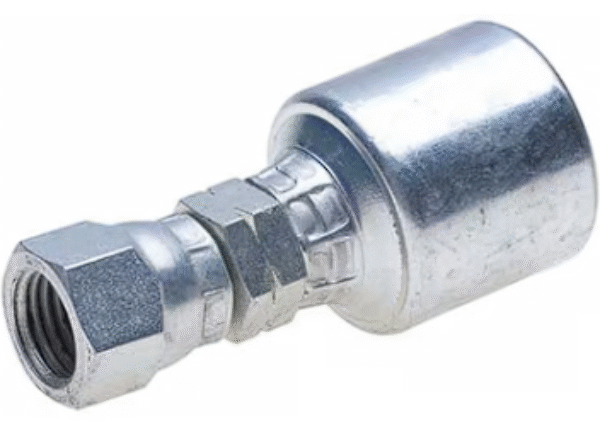

Female SAE 45° Flare Swivel – Megacrimp
Gates Female SAE 45° Flare Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | inch | inch | mm | mm | |||
| MCSF-07-04¥ | 4G-4FSX | 1/4 | 6.4 | 7/16-20 | 1/2 | 9/16 | 57.0 | 31.0 |
| MCSF-08-04¥ | 4G-5FSX | 1/4 | 6.4 | 1/2-20 | 1/2 | 11/16 | 56.2 | 30.2 |
| MCSF-10-04¥ | 4G-6FSX | 1/4 | 6.4 | 5/8-18 | 5/8 | ¾ | 58.7 | 32.6 |
| MCSF-10-05¥ | 5G-6FSX | 5/16 | 7.9 | 5/8-18 | 5/8 | ¾ | 62.1 | 34.1 |
| MCSF-10-06 | 6G-6FSX | 3/8 | 9.5 | 5/8-18 | 5/8 | ¾ | 62.1 | 34.2 |
| MCSF-12-06¥ | 6G-8FSX | 3/8 | 9.5 | 3/4-16 | 11/16 | 7/8 | 63.1 | 35.1 |
| MCSF-12-08¥ | 8G-8FSX | 1/2 | 12.7 | 3/4-16 | 13/16 | 7/8 | 71.6 | 34.1 |
| MCSF-14-08¥ | 8G-10FSX | 1/2 | 12.7 | 7/8-14 | 13/16 | 1 1/16 | 75.9 | 38.4 |
| MCSF-17-12 | 12G-12FSX | 3/4 | 19 | 1 1/16-14 | 1 1/16 | 1 ¼ | 93.5 | 42.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCSF-07-04, MCSF-08-04, MCSF-10-04, MCSF-10-05, MCSF-10-06, MCSF-12-06, MCSF-12-08, MCSF-14-08, MCSF-17-12 |
|---|
