Female Komatsu-Style Japanese Metric Swivel – 45° Bent Tube – Megacrimp
Description
Female Komatsu-Style Japanese Metric Swivel – 45° Bent Tube – Megacrimp

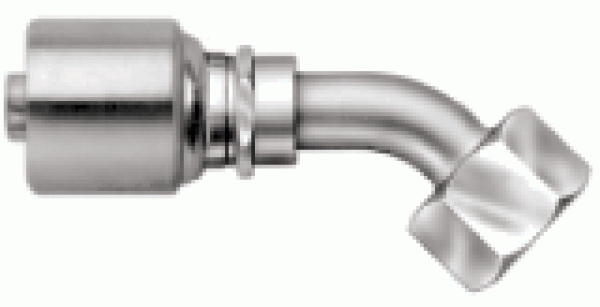

Gates Female Komatsu-Style Japanese Metric Swivel – 45° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | inch | inch | mm | mm | mm | |||
| MCKF45-14-04¥ | 4G-4FKX45 | 1/4 | 6.4 | M14 x 1.5 | 1/2 | 3/4 | 19.0 | 78.0 | 52.0 |
| MCKF45-18-06¥ | 6G-6FKX45 | 3/8 | 9.5 | M18 x 1.5 | 5/8 | 7/8 | 28.0 | 86.0 | 58.1 |
| MCKF45-22-08¥ | 8G-8FKX45 | 1/2 | 12.7 | M22 x 1.5 | 13/16 | 1-1/16 | 18.0 | 95.0 | 57.5 |
| MCKF45-24-10¥ | 10G-10FKX45 | 5/8 | 15.8 | M24 x 1.5 | 15/16 | 1-1/4 | 28.0 | 112.5 | 75.0 |
| MCKF45-30-12¥ | 12G-12FKX45 | 3/4 | 19.0 | M30 x 1.5 | 1-1/16 | 1-7/8 | 30.0 | 133.0 | 82.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings
Additional information
| Model | MCKF45-14-04, MCKF45-18-06, MCKF45-22-08, MCKF45-24-10, MCKF45-30-12 |
|---|
