JIS Female Japanese Industrial Standard Swivel – Megacrimp
$20.511 – $114.164 ex GST
Description

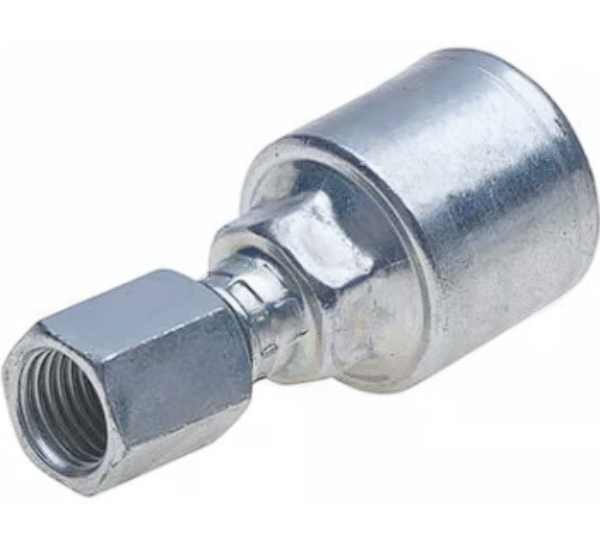

JIS Female Japanese Industrial Standard Swivel – Megacrimp
Gates JIS Female Japanese Industrial Standard Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | inch | inch | mm | mm | |||
| MCBJF-04-04 | 4G-4FJISX | 1/4 | 6.4 | 1/4-19 | 19.0 | 19.0 | 56.0 | 30.0 |
| MCBJF-06-06 | 6G-6FJISX | 3/8 | 9.5 | 3/8-19 | 16.0 | 22.0 | 60.5 | 32.5 |
| MCBJF-08-08 | 8G-8FJISX | 1/2 | 12.7 | 1/2-14 | 20.0 | 27.0 | 74.5 | 37.0 |
| MCBJF-12-12 | 12G-12FJISX | 3/4 | 19.0 | 3/4-14 | 27.0 | 32.0 | 93.3 | 42.3 |
| MCBJF-16-16 | 16G-16FJISX | 1 | 25.4 | 1-11 | 35.0 | 38.0 | 103.6 | 46.8 |
| MCBJF-20-20 ¥ | 20G-20FJISX | 1 1/4 | 31.7 | 1 1/4-11 | 44.5 | 50.8 | 116.5 | 57.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCBJF-04-04, MCBJF-06-06, MCBJF-08-08, MCBJF-12-12, MCBJF-16-16, MCBJF-20-20 |
|---|
