Male Pipe (NPTF – 30° Cone Seat) – Global Spiral
$11.824 – $410.627 ex GST
Description

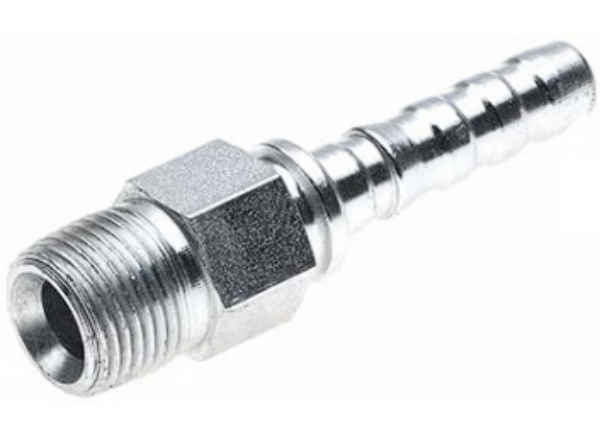

Male Pipe (NPTF – 30° Cone Seat) – Global Spiral
Gates Male Pipe (NPTF – 30° Cone Seat) couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | inch | mm | mm | |||
| GSNM-06-06 | 6GS-6MP | 3/8 | 9.5 | 3/8-18 | 11/16 | 69.0 | 33.2 |
| GSNM-08-06 | 6GS-8MP | 3/8 | 9.5 | 1/2-14 | 7/8 | 73.0 | 37.1 |
| GSNM-08-08 | 8GS-8MP | 1/2 | 12.7 | 1/2-14 | 7/8 | 74.0 | 36.5 |
| GSNM-12-08¥ | 8GS-12MP | 1/2 | 12.7 | 3/4-14 | 1 1/16 | 77.0 | 39.5 |
| GSNM-08-10¥ | 10GS-8MP | 5/8 | 15.8 | 1/2-14 | 15/16 | 87.0 | 36.7 |
| GSNM-12-10¥ | 10GS-12MP | 5/8 | 15.8 | 3/4-14 | 1 1/8 | 91.0 | 40.7 |
| GSNM-12-12 | 12GS-12MP | 3/4 | 19.1 | 3/4-14 | 1 1/16 | 90.0 | 39.0 |
| GSNM-16-12¥ | 12GS-16MP | 3/4 | 19.1 | 1-11 1/2 | 1 3/8 | 97.0 | 46.0 |
| GSNM-12-16¥ | 16GS-12MP | 1 | 25.4 | 3/4-14 | 1 3/8 | 101.0 | 44.2 |
| GSNM-16-16 | 16GS-16MP | 1 | 25.4 | 1-11 1/2 | 1 3/8 | 106.0 | 49.2 |
| GSNM-20-16¥ | 16GS-20MP | 1 | 25.4 | 1 1/4-11 1/2 | 1 3/4 | 109.0 | 52.2 |
| GSNM-20-20 | 20GS-20MP | 1 1/4 | 31.7 | 1 1/4-11 1/2 | 1 3/4 | 127.0 | 55.8 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | inch | mm | mm | |||
| GSPNM-24-24 | 24GSP-24MP | 1 1/2 | 38.1 | 1 1/2-11 1/2 | 2 | 133 | 59.4 |
| GSPNM-32-32 | 32GSP-32MP | 2 | 50.8 | 2-11 1/2 | 2.5 | 153.7 | 61.7 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | inch | mm | mm | |||
| GSMNM-24-24 | 24GSM-24MP | 1 1/2 | 38.1 | 1 1/2-11 | 2 | 165.3 | 70.3 |
| GSMNM-32-32 | 32GSM-32MP | 2 | 50.8 | 2-11 1/2 | 2.75 | 191.6 | 77.5 |
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | GSNM-06-06, GSNM-08-06, GSNM-08-08, GSNM-12-08, GSNM-08-10, GSNM-12-10, GSNM-12-12, GSNM-16-12, GSNM-12-16, GSNM-16-16, GSNM-20-16, GSNM-20-20, GSPNM-24-24, GSPNM-32-32, GSMNM-24-24, GSMNM-32-32 |
|---|
