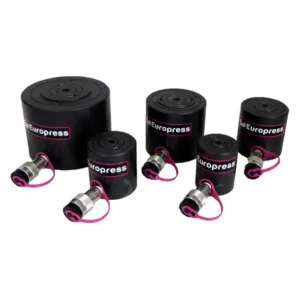

Low Profile – Single Acting – Spring Return
Description
Low Profile – Single Acting – Spring Return – Short Stroke Cylinders
Force: 10-100 t
Stroke: 25-50 mm
Max Working Pressure: 700 Bar
Features
Their main feature is their long stroke in respect to their shortness, but even though the CMP cylinders represent the widest range of low-profile spring return cylinders. All cylinders have a grooved rod top and two threaded holes for the mounting of the tilt saddle. Holes at the bottom of the cylinder are available as an extra, and the wiper avoids the penetration of dirt.
Operational Areas
The small dimensions and the complete treatment against corrosion make these cylinders ideal for lifting, levelling, supporting, and pressing operations in restricted working areas and/or harsh environments.
General maintenance work, industrial assembly, and construction are among the most common applications for this type of cylinder.
Accessories
- Separate ZTT tilt saddle reduces the effects of possible off-centre loads.
Standard
- Pushing saddle prevents any risk of rod deformation.
Options
- F version cylinder with base mounting holes for fixing purposes.
Selection Chart
| PUSHING FORCE | STROKE | EFFECTIVE AREA | OIL VOLUME | MODEL | CLOSED HEIGHT | Ø EXTERNAL | Ø PISTON | Ø ROD | COUPLER HEIGHT | ROD PROJECTION | Ø PCD MOUNTING HOLES | MOUNTING HOLES DEPTH | PCD MOUNTING HOLES FOR THE TILT SADDLE | MOUNTING HOLES FOR THE TILT SADDLE | WEIGHT | * Nominal value, for precise capacity see kN |
| t*kN | mm | cm² | cm3 | A (mm) | D (mm) | E (mm) | F (mm) | H (mm) | K (mm) | U (mm) | V / Z (mm) | W (mm) | S (mm) | kg | ||
|
10 |
25 | 15.9 | 40 | CMP10N25 | 72 | 75 | 45 | 35 | 19 | 1 | 25 |
2xM8 |
24 | 2xM5 | 2.5 | |
| 50 | 80 | CMP10N50 | 97 | 3.2 | ||||||||||||
|
20 |
25 | 28.3 | 71 | CMP20N25 | 75 | 88 | 60 | 45 | 19 | 1 | 60 |
2xM10 |
34 | 2xM5 | 3.4 | |
| 50 | 141 | CMP20N50 | 100 | 4.2 | ||||||||||||
|
30 |
25 | 44.1 | 110 | CMP30N25 | 86 | 102 | 75 | 55 | 19 | 1 | 65 |
2xM10 |
44 | 2xM5 | 5 | |
| 50 | 221 | CMP30N50 | 111 | 6.1 | ||||||||||||
|
50 |
25 | 70.9 | 177 | CMP50N25 | 97 | 127 | 95 | 80 | 22 | 1 | 95 |
2xM12 |
65 | 2xM6 | 7.6 | |
| 50 | 354 | CMP50N50 | 122 | 9.1 | ||||||||||||
|
100 |
25 | 132.7 | 332 | CMP100N25 | 116 | 175 | 130 | 100 | 22 | 2 | 140 |
2xM12 |
65 | 2xM6 | 17.6 | |
| 50 | 664 | CMP100N50 | 141 | 20.5 |
Contact us for further technical information.
Europress, founded in 1919, is a worldwide leader, manufacturer and marketer of high-pressure hydraulic equipment. We continuously improve our services to offer you better options. Our effort in following the most advanced technology innovations in terms of quality, safety, and reliability are certified since 1996, year in which we have been awarded with the ISO 9001 Quality System Certification , and more recently in 2008 with the ISO 14001 Quality System Certification .
Additional information
| Model | CMP10N25, CMP10N50, CMP20N25, CMP20N50, CMP30N25, CMP30N50, CMP50N25, CMP50N50, CMP100N25, CMP100N50 |
|---|
