JIC Male 37° Flare – Megacrimp
$13.889 – $262.463 ex GST
Description

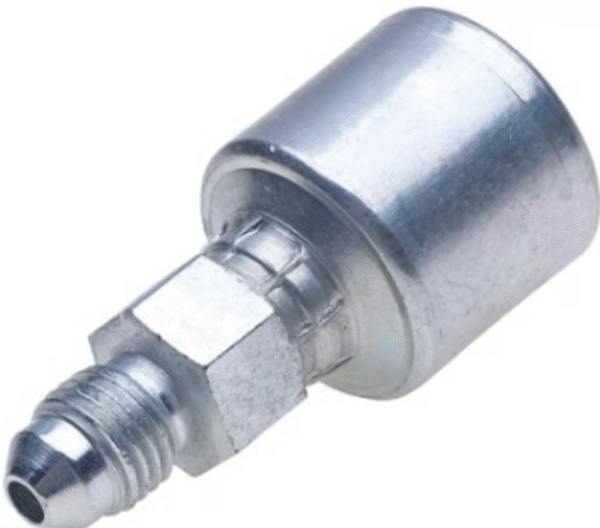

JIC Male 37° Flare – Megacrimp
Gates JIC Male 37° Flare hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | mm | mm | mm | ||||
| MCJM-07-04 | 4G-4MJ | 7103-36045 | 1/4 | 6.4 | 7/16-20 | 14 | 55.5 | 29.5 |
| MCJM-08-04 | 4G-5MJ | 7103-36055 | 1/4 | 6.4 | 1/2-20 | 14 | 55.5 | 29.5 |
| MCJM-09-04 | 4G-6MJ | 7103-36065 | 1/4 | 6.4 | 9/16-18 | 17 | 56.5 | 30.5 |
| MCJM-09-05¥ | 5G-6MJ | 7103-36115 | 5/16 | 7.9 | 9/16-18 | 17 | 57.5 | 29.5 |
| MCJM-09-06 | 6G-6MJ | 7103-36155 | 3/8 | 9.5 | 9/16-18 | 17 | 58.5 | 30.6 |
| MCJM-12-06 | 6G-8MJ | 7103-36165 | 3/8 | 9.5 | 3/4-16 | 19 | 63.0 | 35.1 |
| MCJM-14-06 | 6G-10MJ | 7103-36175 | 3/8 | 9.5 | 7/8-14 | 24 | 67.0 | 39.1 |
| MCJM-12-08 | 8G-8MJ | 7103-36215 | 1/2 | 12.7 | 3/4-16 | 22 | 71.5 | 34.0 |
| MCJM-14-08 | 8G-10MJ | 7103-36225 | 1/2 | 12.7 | 7/8-14 | 24 | 74.0 | 36.5 |
| MCJM-17-08 | 8G-12MJ | 7103-36235 | 1/2 | 12.7 | 1 1/16-12 | 27 | 81.0 | 43.5 |
| MCJM-12-10¥ | 10G-8MJ | 7103-36265 | 5/8 | 15.8 | 3/4-16 | 24 | 74.5 | 37.0 |
| MCJM-14-10 | 10G-10MJ | 7103-36275 | 5/8 | 15.8 | 7/8-14 | 24 | 77.0 | 39.5 |
| MCJM-17-10 | 10G-12MJ | 7103-36285 | 5/8 | 15.8 | 1 1/16-12 | 27 | 81.0 | 43.5 |
| MCJM-17-12 | 12G-12MJ | 7103-36325 | 3/4 | 19 | 1 1/16-12 | 27 | 94.5 | 43.5 |
| MCJM-19-12¥ | 12G-14MJ | 7103-36335 | 3/4 | 19 | 1 3/16-12 | 32 | 95.5 | 44.5 |
| MCJM-21-12 | 12G-16MJ | 7103-36345 | 3/4 | 19 | 1 5/16-12 | 36 | 96.0 | 45.0 |
| MCJM-21-16 | 16G-16MJ | 7103-36385 | 1 | 25.4 | 1 5/16-12 | 36 | 104.5 | 47.7 |
| MCJM-26-16¥ | 16G-20MJ | 7103-36395 | 1 | 25.4 | 1 5/8-12 | 46 | 109.0 | 52.2 |
| MCJM-26-20 | 20G-20MJ | 7103-36435 | 1 1/4 | 31.7 | 1 5/8-12 | 46 | 112.5 | 53.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | mm | mm | mm | ||||
| GSPJM-26-24 ¥ | 24GSP-20MJ | 7347-81455 | 1 1/2 | 38.1 | 1 5/8-12 | 1.97 | 127 | 53.7 |
| GSPJM-30-24 | 24GSP-24MJ | 7347-81465 | 1 1/2 | 38.1 | 1 7/8-12 | 1.97 | 130 | 56.4 |
| GSPJM-40-32 | 32GSP-32MJ | 7347-81535 | 2 | 50.8 | 2 1/2-12 | 2.56 | 161.1 | 69.1 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
View Ferrules for GSP hose stems HERE
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCJM-07-04, MCJM-08-04, MCJM-09-04, MCJM-09-05, MCJM-09-06, MCJM-12-06, MCJM-14-06, MCJM-12-08, MCJM-14-08, MCJM-17-08, MCJM-12-10, MCJM-14-10, MCJM-17-10, MCJM-17-12, MCJM-19-12, MCJM-21-12, MCJM-21-16, MCJM-26-16, MCJM-26-20, GSPJM-26-24, GSPJM-30-24, GSPJM-40-32 |
|---|
