JIC Male 37° Flare – Global Spiral
$15.938 – $262.463 ex GST
Description

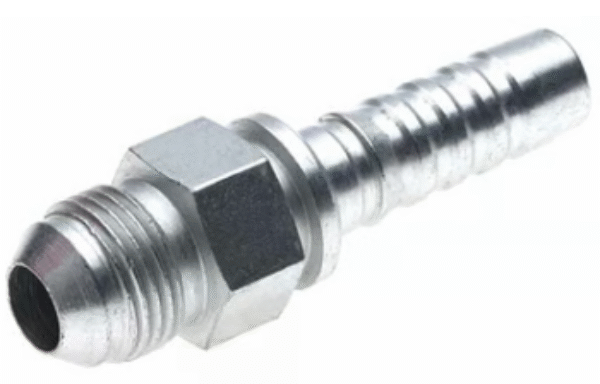

JIC Male 37° Flare – Global Spiral
Gates JIC Male 37° Flare couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | mm | mm | mm | ||||
| GSJM-09-06 | 6GS-6MJ | 7347-22145 | 3/8 | 9.5 | 9/16-18 | 11/16 | 66.0 | 30.2 |
| GSJM-12-06 | 6GS-8MJ | 7347-22155 | 3/8 | 9.5 | 3/4-16 | 13/16 | 70.0 | 34.2 |
| GSJM-14-06 | 6GS-10MJ | 7347-22165 | 3/8 | 9.5 | 7/8-14 | 15/16 | 77.0 | 41.2 |
| GSJM-12-08 | 8GS-8MJ | 7347-22245 | 1/2 | 12.7 | 3/4-16 | 13/16 | 72.0 | 34.5 |
| GSJM-14-08 | 8GS-10MJ | 7347-22255 | 1/2 | 12.7 | 7/8-14 | 7/8 | 75.0 | 37.5 |
| GSJM-14-10 | 10GS-10MJ | 7347-22345 | 5/8 | 15.8 | 7/8-14 | 15/16 | 92.0 | 41.7 |
| GSJM-17-10 | 10GS-12MJ | 7347-22355 | 5/8 | 15.8 | 1 1/16-12 | 1 1/16 | 94.0 | 43.7 |
| GSJM-17-12 | 12GS-12MJ | 7347-22445 | 3/4 | 19.1 | 1 1/16-12 | 1 1/8 | 93.0 | 42.0 |
| GSJM-19-12 | 12GS-14MJ | 7347-22455 | 3/4 | 19.1 | 1 3/16-12 | 1 1/4 | 94.0 | 43.0 |
| GSJM-21-12 | 12GS-16MJ | 7347-22465 | 3/4 | 19.1 | 1 5/16-12 | 1 5/16 | 96.0 | 45.0 |
| GSJM-21-16 | 16GS-16MJ | 7347-22555 | 1 | 25.4 | 1 5/16-12 | 1 3/8 | 104.0 | 47.2 |
| GSJM-26-16¥ | 16GS-20MJ | 7347-22585 | 1 | 25.4 | 1 5/8-12 | 1 5/8 | 108.5 | 51.7 |
| GSJM-26-20 | 20GS-20MJ | 7347-22645 | 1 1/4 | 31.7 | 1 5/8-12 | 1 3/4 | 125.0 | 53.9 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | mm | mm | mm | ||||
| GSPJM-26-24¥ | 24GSP-20MJ | 7347-81455 | 1 1/2 | 38.1 | 1 5/8-12 | 1.97 | 127 | 53.7 |
| GSPJM-30-24 | 24GSP-24MJ | 7347-81465 | 1 1/2 | 38.1 | 1 7/8-12 | 1.97 | 130 | 56.4 |
| GSPJM-40-32 | 32GSP-32MJ | 7347-81535 | 2 | 50.8 | 2 1/2-12 | 2.56 | 161.1 | 69.1 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | L | C | |
| inch | mm | mm | mm | mm | ||||
| GSMJM-30-24¥ | 24GSM-24MJ | 7341-02555 | 1 1/2 | 38.1 | 1 7/8-12 | 1.97 | 162.3 | 67.3 |
| GSMJM-40-32¥ | 32GSM-32MJ | 7341-20465 | 2 | 50.8 | 2 1/2-12 | 2.56 | 196.2 | 82.2 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GSJM-09-06, GSJM-12-06, GSJM-14-06, GSJM-12-08, GSJM-14-08, GSJM-14-10, GSJM-17-10, GSJM-17-12, GSJM-19-12, GSJM-21-12, GSJM-21-16, GSJM-26-16, GSJM-26-20, GSPJM-26-24, GSPJM-30-24, GSPJM-40-32, GSMJM-30-24, GSMJM-40-32 |
|---|
