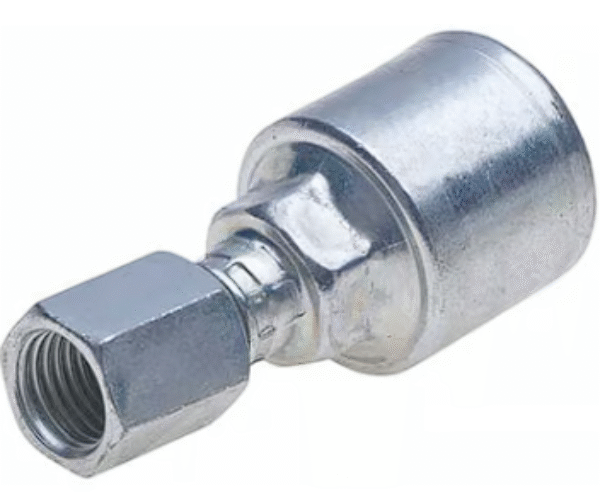

JIC Female 37° Flare Swivel – Megacrimp
Gates JIC Female 37° Flare Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | mm | mm | mm | mm | ||||
| MCJF-07-04 | 4G-4FJX | 7103-08045 | 1/4 | 6.4 | 7/16-20 | 15.0 | 14.0 | 55.9 | 29.9 |
| MCJF-08-04 | 4G-5FJX | 7103-08055 | 1/4 | 6.4 | 1/2-20 | 15.0 | 17.0 | 58.3 | 32.3 |
| MCJF-09-04 | 4G-6FJX | 7103-08065 | 1/4 | 6.4 | 9/16-18 | 15.0 | 19.0 | 59.6 | 33.6 |
| MCJF-08-05¥ | 5G-5FJX | 7103-09095 | 5/16 | 7.9 | 1/2-20 | 17.0 | 17.0 | 62.1 | 34.1 |
| MCJF-09-05¥ | 5G-6FJX | 7103-09105 | 5/16 | 7.9 | 9/16-18 | 17.0 | 19.0 | 63.6 | 35.6 |
| MCJF-07-06¥ | 6G-4FJX | 7103-09135 | 3/8 | 9.5 | 7/16-20 | 14.0 | 74.7 | 46.8 | |
| MCJF-08-06¥ | 6G-5FJX | 7103-09125 | 3/8 | 9.5 | 1/2-20 | 17.0 | 17.0 | 75.2 | 47.3 |
| MCJF-09-06 | 6G-6FJX | 7103-08145 | 3/8 | 9.5 | 9/16-18 | 18.0 | 19.0 | 61.5 | 32.7 |
| MCJF-12-06 | 6G-8FJX | 7103-08155 | 3/8 | 9.5 | 3/4-16 | 18.0 | 24.0 | 66.7 | 37.9 |
| MCJF-14-06 | 6G-10FJX | 7103-08165 | 3/8 | 9.5 | 7/8-14 | 18.0 | 27.0 | 70.0 | 41.2 |
| MCJF-09-08 ¥ | 8G-6FJX | 7103-09195 | 1/2 | 12.7 | 9/16-18 | 22.0 | 19.0 | 88.1 | 50.6 |
| MCJF-12-08 | 8G-8FJX | 7103-08205 | 1/2 | 12.7 | 3/4-16 | 22.0 | 24.0 | 73.2 | 38.0 |
| MCJF-14-08 | 8G-10FJX | 7103-08215 | 1/2 | 12.7 | 7/8-14 | 22.0 | 27.0 | 76.5 | 41.3 |
| MCJF-17-08 | 8G-12FJX | 7103-08225 | 1/2 | 12.7 | 1 1/16-12 | 22.0 | 32.0 | 77.7 | 42.5 |
| MCJF-12-10 ¥ | 10G-8FJX | 7103-09255 | 5/8 | 15.8 | 3/4-16 | 24.0 | 24.0 | 92.6 | 55.1 |
| MCJF-14-10 | 10G-10FJX | 7103-08265 | 5/8 | 15.8 | 7/8-14 | 24.0 | 27.0 | 79.7 | 42.2 |
| MCJF-17-10 | 10G-12FJX | 7103-08275 | 5/8 | 15.8 | 1 1/16-12 | 24.0 | 32.0 | 81.4 | 43.9 |
| MCJF-19-10 ¥ | 10G-14FJX | 7103-08285 | 5/8 | 15.8 | 1 3/16-12 | 24.0 | 36.0 | 86.1 | 48.6 |
| MCJF-14-12 | 12G-10FJX | 7103-09315 | 3/4 | 19 | 7/8-14 | 27.0 | 27.0 | 122.0 | 71.0 |
| MCJF-17-12 | 12G-12FJX | 7103-08325 | 3/4 | 19 | 1 1/16-12 | 30.0 | 32.0 | 98.1 | 47.1 |
| MCJF-19-12 ¥ | 12G-14FJX | 7103-08335 | 3/4 | 19 | 1 3/16-12 | 30.0 | 36.0 | 96.9 | 45.9 |
| MCJF-21-12 | 12G-16FJX | 7103-08345 | 3/4 | 19 | 1 5/16-12 | 30.0 | 41.0 | 101.3 | 50.3 |
| MCJF-17-16 | 16G-12FJX | 7103-09375 | 1 | 25.4 | 1 1/16-12 | 36.0 | 32.0 | 136.0 | 79.2 |
| MCJF-19-16 ¥ | 16G-14FJX | 7103-09385 | 1 | 25.4 | 1 3/16-12 | 36.0 | 36.0 | 146.0 | 89.2 |
| MCJF-21-16 | 16G-16FJX | 7103-08395 | 1 | 25.4 | 1 5/16-12 | 36.0 | 41.0 | 107.8 | 51.0 |
| MCJF-26-16 | 16G-20FJX | 7103-08405 | 1 | 25.4 | 1 5/8-12 | 36.0 | 50.0 | 115.3 | 58.5 |
| MCJF-26-20 | 20G-20FJX | 7100-01145 | 1 1/4 | 31.7 | 1 5/8-12 | 44.5 | 50.8 | 116.9 | 57.9 |
| MCJF-30-20 | 20G-24FJX | 7100-01155 | 1 1/4 | 31.7 | 1 7/8-12 | 47.6 | 57.5 | 123.2 | 66.8 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | mm | mm | mm | mm | ||||
| GSPJF-30-24 | 24GSP-24FJX | 7347-82455 | 1 1/2 | 38.1 | 1 7/8-12 | 1.97 | 2.36 | 143.4 | 69.7 |
| GSPJF-40-24 ¥ | 24GSP-32FJX | 7347-82465 | 1 1/2 | 38.1 | 2 1/2-12 | 2.56 | 2.95 | 172.6 | 80.6 |
| GSPJF-40-32 | 32GSP-32FJX | 7347-82525 | 2 | 50.8 | 2 1/2-12 | 2.56 | 2.95 | 172.6 | 80.6 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
View Ferrules for GSP hose stems HERE
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Part Number | MCJF-07-04, MCJF-08-04, MCJF-09-04, MCJF-08-05, MCJF-09-05, MCJF-07-06, MCJF-08-06, MCJF-09-06, MCJF-12-06, MCJF-14-06, MCJF-09-08, MCJF-12-08, MCJF-14-08, MCJF-17-08, MCJF-12-10, MCJF-14-10, MCJF-17-10, MCJF-19-10, MCJF-14-12, MCJF-17-12, MCJF-19-12, MCJF-21-12, MCJF-17-16, MCJF-19-16, MCJF-21-16, MCJF-26-16, MCJF-26-20, MCJF-30-20, GSPJF-30-24, GSPJF-40-24, GSPJF-40-32 |
|---|
