JIC Female 37° Flare Swivel – Global Spiral
$13.507 – $667.726 ex GST
Description

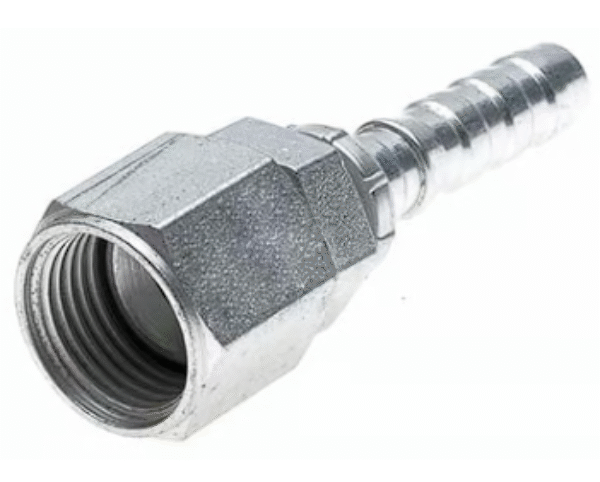

JIC Female 37° Flare Swivel – Global Spiral
Gates JIC Female 37° Flare Swivel couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | inch | inch | mm | mm | |||
| GSJF-09-06 | 6GS-6FJX | 3/8 | 9.5 | 9/16-18 | 3/4 | 3/4 | 69.0 | 33.2 |
| GSJF-12-06 | 6GS-8FJX | 3/8 | 9.5 | 3/4-16 | 3/4 | 7/8 | 71.0 | 35.2 |
| GSJF-12-08 | 8GS-8FJX | 1/2 | 12.7 | 3/4-16 | 7/8 | 7/8 | 72.0 | 34.5 |
| GSJF-14-08 | 8GS-10FJX | 1/2 | 12.7 | 7/8-14 | 7/8 | 1 1/16 | 75.9 | 38.4 |
| GSJF-17-08 | 8GS-12FJX | 1/2 | 12.7 | 1 1/16-12 | 7/8 | 1 1/4 | 77.0 | 39.5 |
| GSJF-14-10 | 10GS-10FJX | 5/8 | 15.8 | 7/8-14 | 1 | 1 1/16 | 93.5 | 43.2 |
| GSJF-17-10 | 10GS-12FJX | 5/8 | 15.8 | 1 1/16-12 | 1 | 1 1/4 | 95.0 | 44.7 |
| GSJF-14-12 | 12GS-10FJX | 3/4 | 19.1 | 7/8-14 | 1 1/16 | 1 1/8 | 98.4 | 47.4 |
| GSJF-17-12 | 12GS-12FJX | 3/4 | 19.1 | 1 1/16-12 | 1 1/8 | 1 1/4 | 98.2 | 47.0 |
| GSJF-19-12¥ | 12GS-14FJX | 3/4 | 19.1 | 1 3/16-12 | 1 1/8 | 1 3/8 | 103.2 | 52.2 |
| GSJF-21-12 | 12GS-16FJX | 3/4 | 19.1 | 1 5/16-12 | 1 1/4 | 1 1/2 | 102.0 | 51.0 |
| GSJF-17-16 | 16GS-12FJX | 1 | 25.4 | 1 1/16-12 | 1 3/8 | 1 3/8 | 107.5 | 50.7 |
| GSJF-19-16¥ | 16GS-14FJX | 1 | 25.4 | 1 3/16-12 | 1 3/8 | 1 1/2 | 107.9 | 51.1 |
| GSJF-21-16 | 16GS-16FJX | 1 | 25.4 | 1 5/16-12 | 1 1/2 | 1 1/2 | 109.2 | 52.8 |
| GSJF-26-16 | 16GS-20FJX | 1 | 25.4 | 1 5/8-12 | 1 1/2 | 2 | 115.0 | 58.6 |
| GSJF-21-20¥ | 20GS-16FJX | 1 1/4 | 31.7 | 1 5/16-12 | 1 3/4 | 1 5/8 | 129.0 | 57.9 |
| GSJF-26-20 | 20GS-20FJX | 1 1/4 | 31.7 | 1 5/8-12 | 1 7/8 | 2 | 136.0 | 64.9 |
| GSJF-30-20 | 20GS-24FJX | 1 1/4 | 31.7 | 1 7/8-12 | 1 7/8 | 2 3/8 | 137.0 | 65.9 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | inch | inch | mm | mm | |||
| GSPJF-30-24 | 24GSP-24FJX | 1 1/2 | 38.1 | 1 7/8-12 | 1.97 | 2.36 | 143.4 | 69.7 |
| GSPJF-40-24 | 24GSP-32FJX | 1 1/2 | 38.1 | 2 1/2-12 | 2.56 | 2.95 | 172.6 | 80.6 |
| GSPJF-40-32 | 32GSP-32FJX | 2 | 50.8 | 2 1/2-12 | 2.56 | 2.95 | 172.6 | 80.6 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread Size | H1 | H2 | L | C | |
| inch | mm | inch | inch | mm | mm | |||
| GSMJF-30-24 | 24GSM-24FJX | 1 1/2 | 38.1 | 1 7/8-12 | 2.17 | 2.36 | 172.3 | 77.2 |
| GSMJF-40-32 | 32GSM-32FJX | 2 | 50.8 | 2 1/2-12 | 2.76 | 2.95 | 205.1 | 91.1 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | GSJF-09-06, GSJF-12-06, GSJF-12-08, GSJF-14-08, GSJF-14-10, GSJF-14-12, GSJF-17-08, GSJF-17-10, GSJF-17-12, GSJF-17-16, GSJF-19-12, GSJF-21-12, GSJF-21-16, GSJF-26-16, GSJF-26-20, GSJF-30-20, GSPJF-30-24, GSPJF-40-24, GSPJF-40-32, GSMJF-30-24, GSMJF-40-32 |
|---|
