JIC Female 37° Flare Swivel – 90° Bent Tube – Megacrimp
$17.893 – $268.762 ex GST
Description

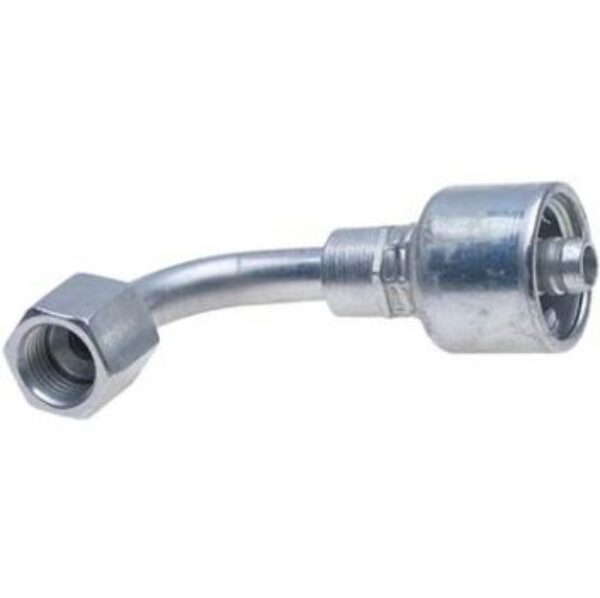

JIC Female 37° Flare Swivel – 90° Bent Tube – Megacrimp
Gates JIC Female 37° Flare Swivel – 90° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| MCJF90S-07-04 | 4G-4FJX90S | 7103-47045 | 1/4 | 6.4 | 7/16-20 | 12.7 | 14.0 | 21.0 | 63.1 | 37.1 |
| MCJF90M-07-04 | 4G-4FJX90M | 7103-47055 | 1/4 | 6.4 | 7/16-20 | 12.7 | 14.0 | 32.0 | 63.2 | 37.1 |
| MCJF90L-07-04 | 4G-4FJX90L | 7103-47065 | 1/4 | 6.4 | 7/16-20 | 12.7 | 14.0 | 46.0 | 63.1 | 37.1 |
| MCJF90S-08-04 ¥ | 4G-5FJX90-023 | 7103-47075 | 1/4 | 6.4 | 1/2-20 | 12.7 | 17.0 | 23.0 | 62.2 | 36.2 |
| MCJF90M-08-04 | 4G-5FJX90M | 7103-47095 | 1/4 | 6.4 | 1/2-20 | 12.7 | 17.0 | 32.0 | 57.2 | 31.2 |
| MCJF90S-09-04 ¥ | 4G-6FJX90S | 7103-47125 | 1/4 | 6.4 | 9/16-18 | 12.7 | 19.0 | 23.0 | 70.5 | 44.4 |
| MCJF90M-09-04 | 4G-6FJX90M | 7103-47135 | 1/4 | 6.4 | 9/16-18 | 12.7 | 19.0 | 38.0 | 64.9 | 38.9 |
| MCJF90L-09-04 | 4G-6FJX90L | 7103-47145 | 1/4 | 6.4 | 9/16-18 | 12.7 | 19.0 | 54.0 | 69.3 | 43.2 |
| MCJF90S-09-05 ¥ | 5G-6FJX90S | 7103-47165 | 5/16 | 7.9 | 9/16-18 | 15.9 | 19.0 | 23.0 | 75.2 | 47.2 |
| MCJF90M-09-05 ¥ | 5G-6FJX90M | 7103-47175 | 5/16 | 7.9 | 9/16-18 | 15.9 | 19.0 | 38.0 | 76.0 | 48.0 |
| MCJF90S-07-06 ¥ | 6G-4FJX90S | 7103-47195 | 3/8 | 9.5 | 7/16-20 | 15.9 | 14.0 | 21.0 | 66.1 | 38.2 |
| MCJF90L-07-06 ¥ | 6G-4FJX90L | 7103-47635 | 3/8 | 9.5 | 7/16-20 | 15.9 | 14.0 | 46.0 | 60.2 | 32.3 |
| MCJF90S-09-06 | 6G-6FJX90S | 7103-47205 | 3/8 | 9.5 | 9/16-18 | 15.9 | 19.0 | 23.0 | 74.2 | 46.3 |
| MCJF90M-09-06 | 6G-6FJX90M | 7103-47215 | 3/8 | 9.5 | 9/16-18 | 15.9 | 19.0 | 38.0 | 74.2 | 46.3 |
| MCJF90L-09-06 | 6G-6FJX90L | 7103-47225 | 3/8 | 9.5 | 9/16-18 | 15.9 | 19.0 | 54.0 | 74.2 | 46.3 |
| MCJF90S-12-06 | 6G-8FJX90S | 7103-47245 | 3/8 | 9.5 | 3/4-16 | 15.9 | 24.0 | 29.0 | 82.6 | 54.7 |
| MCJF90M-12-06 | 6G-8FJX90M | 7103-47255 | 3/8 | 9.5 | 3/4-16 | 15.9 | 24.0 | 41.0 | 84.1 | 56.2 |
| MCJF90L-12-06 | 6G-8FJX90L | 7103-47265 | 3/8 | 9.5 | 3/4-16 | 15.9 | 24.0 | 64.0 | 84.5 | 56.6 |
| MCJF90M-14-06 ¥ | 6G-10FJX90M | 7103-47235 | 3/8 | 9.5 | 7/8-14 | – | 27.0 | 47.0 | 82.5 | 54.6 |
| MCJF90S-12-08 | 8G-8FJX90S | 7103-47285 | 1/2 | 12.7 | 3/4-16 | – | 24.0 | 29.0 | 81.0 | 43.5 |
| MCJF90M-12-08 | 8G-8FJX90M | 7103-47295 | 1/2 | 12.7 | 3/4-16 | – | 24.0 | 41.0 | 77.3 | 39.9 |
| MCJF90L-12-08 | 8G-8FJX90L | 7103-47305 | 1/2 | 12.7 | 3/4-16 | – | 24.0 | 64.0 | 77.3 | 39.9 |
| MCJF90S-14-08 | 8G-10FJX90S | 7103-47325 | 1/2 | 12.7 | 7/8-14 | 20.6 | 27.0 | 32.0 | 93.3 | 55.8 |
| MCJF90M-14-08 | 8G-10FJX90M | 7103-47335 | 1/2 | 12.7 | 7/8-14 | 20.6 | 27.0 | 47.0 | 93.3 | 55.8 |
| MCJF90L-14-08 ¥ | 8G-10FJX90L | 7103-47345 | 1/2 | 12.7 | 7/8-14 | 20.6 | 27.0 | 70.0 | 93.3 | 55.8 |
| MCJF90S-17-08 ¥ | 8G-12FJX90S | 7103-47355 | 1/2 | 12.7 | 1 1/16-12 | – | 32.0 | 48.0 | 105.0 | 67.5 |
| MCJF90S-14-10 ¥ | 10G-10FJX90-036 | 7103-47655 | 5/8 | 15.8 | 7/8-14 | 23.8 | 27.0 | 36.0 | 89.0 | 51.5 |
| MCJF90M-14-10 | 10G-10FJX90M | 7103-47375 | 5/8 | 15.8 | 7/8-14 | 23.8 | 27.0 | 47.0 | 93.4 | 55.9 |
| MCJF90L-14-10 ¥ | 10G-10FJX90L | 7103-47385 | 5/8 | 15.8 | 7/8-14 | 23.8 | 27.0 | 70.0 | 85.9 | 48.4 |
| MCJF90S-17-10 ¥ | 10G-12FJX90S | 7103-47405 | 5/8 | 15.8 | 1 1/16-12 | 23.8 | 32.0 | 48.0 | 106.1 | 68.6 |
| MCJF90L-17-10 ¥ | 10G-12FJX90L | 7103-47425 | 5/8 | 15.8 | 1 1/16-12 | 23.8 | 32.0 | 96.0 | 116.5 | 79.0 |
| MCJF90M-14-12¥ | 12G-10FJX90M | 7103-47435 | 3/4 | 19 | 7/8-14 | 27.0 | 27.0 | 47.0 | 114.1 | 63.1 |
| MCJF90S-17-12 | 12G-12FJX90S | 7103-47445 | 3/4 | 19 | 1 1/16-12 | 27.0 | 32.0 | 48.0 | 122.4 | 71.4 |
| MCJF90M-17-12 | 12G-12FJX90M | 7103-47455 | 3/4 | 19 | 1 1/16-12 | 27.0 | 32.0 | 58.0 | 122.4 | 71.4 |
| MCJF90L-17-12 | 12G-12FJX90L | 7103-47465 | 3/4 | 19 | 1 1/16-12 | 27.0 | 32.0 | 96.0 | 122.4 | 71.4 |
| MCJF90S-19-12 ¥ | 12G-14FJX90-054 | 7103-47615 | 3/4 | 19 | 1 3/16-12 | 27.0 | 36.0 | 54.0 | 124.6 | 73.0 |
| MCJF90L-19-12 ¥ | 12G-14FJX90-100 | 7103-47625 | 3/4 | 19 | 1 3/16-12 | 27.0 | 36.0 | 100.0 | 107.4 | 56.4 |
| MCJF90S-21-12 | 12G-16FJX90S | 7103-47475 | 3/4 | 19 | 1 5/16-12 | – | 41.0 | 56.0 | 132.0 | 81.7 |
| MCJF90M-21-12 ¥ | 12G-16FJX90S | 7103-14535 | 3/4 | 19 | 1 5/16-12 | 34.9 | 41.0 | 71.0 | 131.1 | 80.1 |
| MCJF90S-21-16 ¥ | 16G-16FJX90S | 7103-47485 | 1 | 25.4 | 1 5/16-12 | 34.9 | 41.0 | 56.0 | 145.6 | 88.8 |
| MCJF90M-21-16 | 16G-16FJX90M | 7103-47495 | 1 | 25.4 | 1 5/16-12 | 34.9 | 41.0 | 71.0 | 120.2 | 63.4 |
| MCJF90L-21-16 ¥ | 16G-16FJX90L | 7103-47505 | 1 | 25.4 | 1 5/16-12 | 34.9 | 41.0 | 114.0 | 120.3 | 63.5 |
| MCJF90S-26-16 ¥ | 16G-20FJX90S | 7103-47535 | 1 | 25.4 | 1 5/8-12 | 34.9 | 50.0 | 64.0 | 157.0 | 75.5 |
| MCJF90M-26-20 | 20G-20FJX90M | 7103-47575 | 1 1/4 | 31.7 | 1 5/8-12 | 44.5 | 50.0 | 78.0 | 159.0 | 100.0 |
| MCJF90L-26-20 ¥ | 20G-20FJX90L | 7103-47585 | 1 1/4 | 31.7 | 1 5/8-12 | 44.5 | 50.0 | 129.0 | 158.0 | 99.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| GSPJF90S-30-24 ¥ | 24GSP-24FJX90-089 | 7347-84745 | 1 1/2 | 38.1 | 1 7/8-12 | 2.16 | 2.36 | 89 | 212 | 138.4 |
| GSPJF90M-30-24 | 24GSP-24FJX90-118 | 7347-84755 | 1 1/2 | 38.1 | 1 7/8-12 | 2.16 | 2.36 | 118 | 189.5 | 115.8 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
View Ferrules for GSP hose stems HERE
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCJF90S-07-04, MCJF90M-07-04, MCJF90L-07-04, MCJF90S-08-04, MCJF90M-08-04, MCJF90S-09-04, MCJF90M-09-04, MCJF90L-09-04, MCJF90S-09-05, MCJF90M-09-05, MCJF90S-07-06, MCJF90L-07-06, MCJF90S-09-06, MCJF90M-09-06, MCJF90L-09-06, MCJF90S-12-06, MCJF90M-12-06, MCJF90L-12-06, MCJF90M-14-06, MCJF90S-12-08, MCJF90M-12-08, MCJF90L-12-08, MCJF90S-14-08, MCJF90M-14-08, MCJF90L-14-08, MCJF90S-17-08, MCJF90S-14-10, MCJF90M-14-10, MCJF90L-14-10, MCJF90S-17-10, MCJF90L-17-10, MCJF90M-14-12, MCJF90S-17-12, MCJF90M-17-12, MCJF90L-17-12, MCJF90S-19-12, MCJF90L-19-12, MCJF90S-21-12, MCJF90M-21-12, MCJF90S-21-16, MCJF90M-21-16, MCJF90L-21-16, MCJF90S-26-16, MCJF90M-26-20, MCJF90L-26-20, GSPJF90S-30-24, GSPJF90M-30-24 |
|---|
