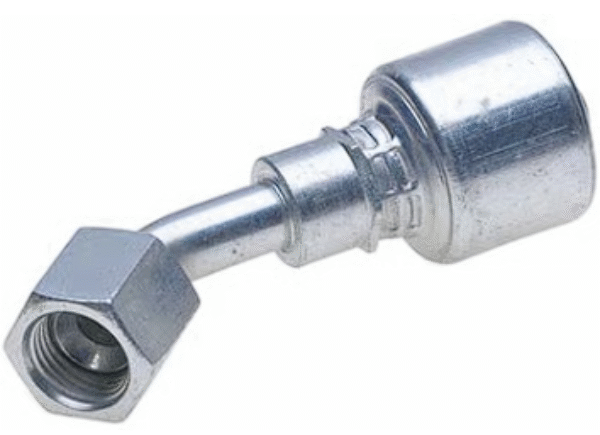

JIC Female 37° Flare Swivel – 45° Bent Tube – Megacrimp
Gates JIC Female 37° Flare Swivel – 45° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| MCJF45S-07-04 | 4G-4FJX45S | 7103-46055 | 1/4 | 6.4 | 7/16-20 | 12.7 | 14.0 | 10.0 | 69.7 | 43.7 |
| MCJF45-08-04¥ | 4G-5FJX45-011 | 7103-46075 | 1/4 | 6.4 | 1/2-20 | 17.0 | 17.0 | 11.0 | 65.8 | 39.7 |
| MCJF45S-09-04 | 4G-6FJX45S | 7103-46135 | 1/4 | 6.4 | 9/16-18 | 12.7 | 19.0 | 11.0 | 77.8 | 51.8 |
| MCJF45-08-05¥ | 5G-5FJX45-011 | 7103-46175 | 5/16 | 7.9 | 1/2-20 | 15.9 | 17.0 | 11.0 | 68.3 | 40.3 |
| MCJF45S-09-05¥ | 5G-6FJX45S | 7103-46195 | 5/16 | 7.9 | 9/16-18 | 15.9 | 19.0 | 11.0 | 72.4 | 44.4 |
| MCJF45S-09-06 | 6G-6FJX45S | 7103-46235 | 3/8 | 9.5 | 9/16-18 | 15.9 | 19.0 | 11.0 | 77.5 | 49.6 |
| MCJF45S-12-06 | 6G-8FJX45S | 7103-46255 | 3/8 | 9.5 | 3/4-16 | 15.9 | 24.0 | 15.0 | 89.1 | 61.6 |
| MCJF45S-12-08 | 8G-8FJX45S | 7103-46295 | 1/2 | 12.7 | 3/4-16 | – | 24.0 | 15.0 | 86.9 | 49.5 |
| MCJF45S-14-08 | 8G-10FJX45S | 7103-46315 | 1/2 | 12.7 | 7/8-14 | 20.6 | 27.0 | 16.0 | 96.8 | 59.4 |
| MCJF45S-14-10 | 10G-10FJX45S | 7103-46355 | 5/8 | 15.8 | 7/8-14 | 23.8 | 27.0 | 16.0 | 96.4 | 59.0 |
| MCJF45S-17-10 | 10G-12FJX45S | 7103-46375 | 5/8 | 15.8 | 1 1/16-12 | 23.8 | 32.0 | 21.0 | 116.0 | 78.5 |
| MCJF45S-14-12 | 12G-10FJX45S | 7103-46415 | 3/4 | 19 | 7/8-14 | 27.0 | 27.0 | 19.0 | 116.3 | 65.3 |
| MCJF45S-17-12 | 12G-12FJX45S | 7103-46425 | 3/4 | 19 | 1 1/16-12 | 27.0 | 32.0 | 21.0 | 129.2 | 78.2 |
| MCJF45S-21-12 | 12G-16FJX45S | 7103-46455 | 3/4 | 19 | 1 5/16-12 | – | 41.0 | 24.0 | 133.1 | 82.1 |
| MCJF45S-21-16 | 16G-16FJX45S | 7103-46505 | 1 | 25.4 | 1 5/16-12 | 34.9 | 41.0 | 24.0 | 144.3 | 87.5 |
| MCJF45-26-20 | 20G-20FJX45-035 | 7103-46605 | 1 1/4 | 31.7 | 1 5/8-12 | 44.5 | 50.0 | 35.0 | 169.0 | 110.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | Thread Size | H1 | H2 | T | L | C | |
| inch | mm | mm | mm | mm | mm | mm | ||||
| GSPJF45-30-24 | 24GSP-24FJX45-050 | 7347-83735 | 1 1/2 | 38.1 | 1 7/8-12 | 2.16 | 2.36 | 50 | 233 | 159.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
View Ferrules for GSP hose stems HERE
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCJF45S-07-04, MCJF45-08-04, MCJF45S-09-04, MCJF45-08-05, MCJF45S-09-05, MCJF45S-09-06, MCJF45S-12-06, MCJF45S-12-08, MCJF45S-14-08, MCJF45S-14-10, MCJF45S-17-10, MCJF45S-14-12, MCJF45S-17-12, MCJF45S-21-12, MCJF45S-21-16, MCJF45-26-20, GSPJF45-30-24 |
|---|
