BSPP Female O-Ring Swivel 45° – Global Spiral
$31.799 – $829.651 ex GST
Description
BSPP Female O-Ring Swivel 45° – Global Spiral

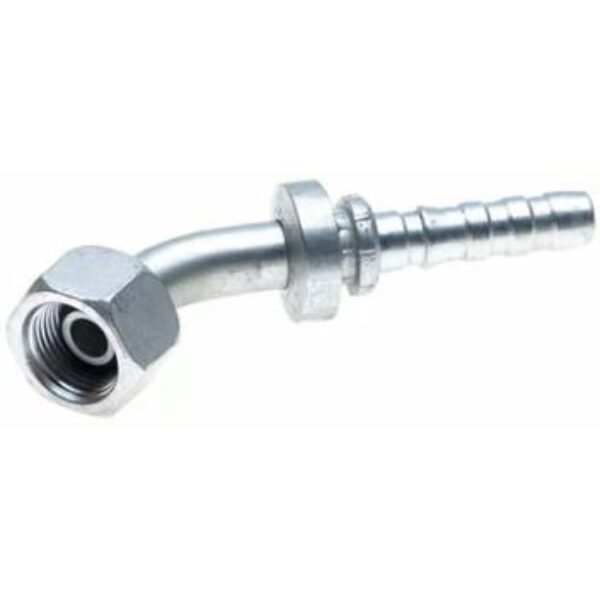

Gates BSPP Female O-Ring Swivel 45° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| GSBF45-06-06 | 6GS-6FBSPORX45 | 3/8 | 9.5 | G 3/8” – 19 BSP | 82.2 | 46.3 | 15.4 | 22.0 |
| GSBF45-08-08 | 8GS-8FBSPORX45 | 1/2 | 12.7 | G 1/2” – 14 BSP | 91.5 | 54.1 | 17.0 | 27.0 |
| GSBF45-10-10 | 10GS-10FBSPORX45 | 5/8 | 15.8 | G 5/8” – 14 BSP | 118.0 | 67.7 | 21.3 | 30.0 |
| GSBF45-12-10¥ | 10GS-12FBSPORX45 | 5/8 | 15.8 | G 3/4” – 14 BSP | 127.9 | 77.6 | 31.2 | 32.0 |
| GSBF45-12-12 | 12GS-12FBSPORX45 | 3/4 | 19.1 | G 3/4” – 14 BSP | 134.4 | 83.4 | 28.3 | 32.0 |
| GSBF45-16-16 | 16GS-16FBSPORX45 | 1 | 25.4 | G 1” – 11 BSP | 155.5 | 99.1 | 30.9 | 41.0 |
| GSBF45-20-20 | 20GS-20FBSPORX45 | 1-1/4 | 31.7 | G 1.1/4” – 11 BSP | 191.1 | 119.9 | 37.5 | 50.0 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| GSPBF45-24-24 | 24GSP-24FBSPORX45 | 1 1/2 | 38.1 | G 1 1/2-11 BSP | 214.5 | 140.9 | 49.7 | 55.0 |
| GSPBF45-32-32 | 32GSP-32FBSPORX45 | 2 | 50.8 | G 2-11 BSP | 276.1 | 184.1 | 62.3 | 70.0 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| GSMBF45-24-24 | 24GSM-24FBSPORX45 | 1 1/2 | 38.1 | G 1 1/2-11 BSP | 242.5 | 147.5 | 49.7 | 55.0 |
| GSMBF45-32-32 | 32GSM-32FBSPORX45 | 2 | 50.8 | G 2-11 BSP | 307.6 | 193.6 | 75.0 | 70.0 |
¥ Coupling pricing & availability on request.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Coupling pricing & availability on request.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | GSBF45-06-06, GSBF45-08-08, GSBF45-10-10, GSBF45-12-10, GSBF45-12-12, GSBF45-16-16, GSBF45-20-20, GSPBF45-24-24, GSPBF45-32-32, GSMBF45-24-24, GSMBF45-32-32 |
|---|
