Double Acting – Hollow Aluminium Piston
Description

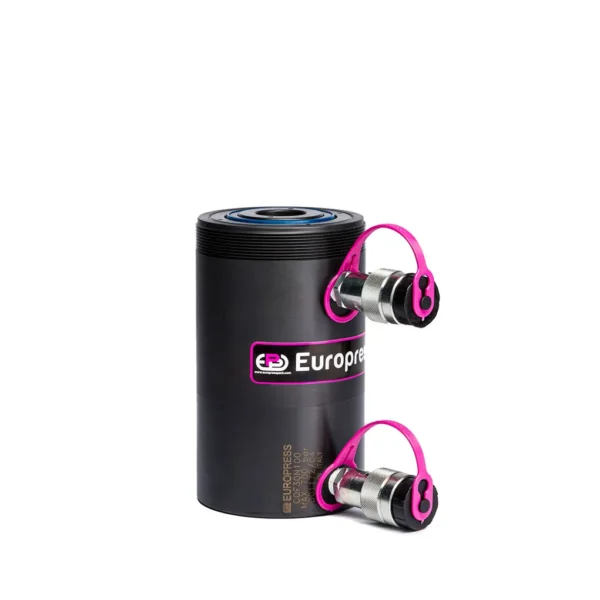

Double Acting – Hollow Aluminium Piston Cylinders
Force: 30-200 t
Stroke: 75-250 mm
Max Working Pressure: 700 Bar
Features
All COF cylinders are supplied with a smooth drilled head and have a through hole and thread on the body, in the rod, and in the base to facilitate the fixing or insertion of appropriate accessories. A safety valve connected to the return chamber prevents overpressure. The end-of-stroke ring nut is complete with a scraper, which prevents impurities from entering the cylinder. The protective treatment adopted in these cylinders is particularly suitable for protecting the central hole from external aggressive agents.
Operational Areas
The through hole makes the cylinders particularly suitable for tensioning operations of tensile structures and the assembly and extraction of pulleys, bushings, and heat exchanger tubes. They can be used both in push and traction by inserting a bar or a rope appropriately constrained to the head.
Accessories
- ZTE Threaded head allows the fastening of threaded rods.
Standard
- Smooth perforated head avoids the risk of stem deformation.

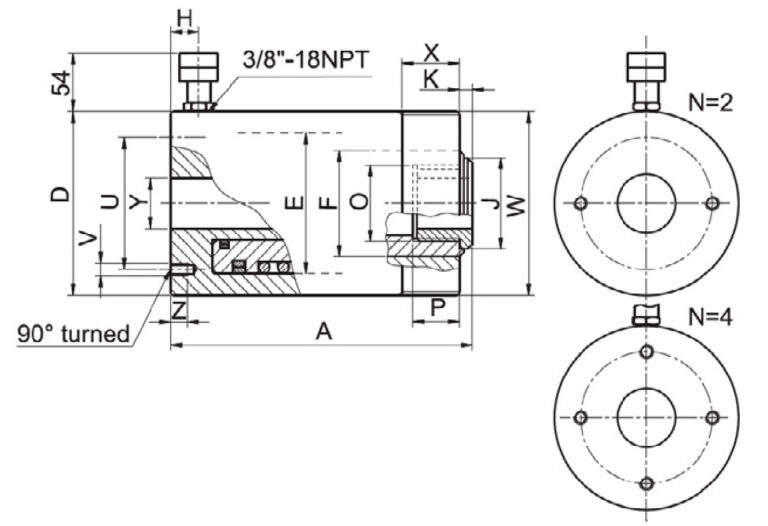

Selection Chart
| PUSHING FORCE | PULLING FORCE | RACE | THRUST AREA | TRACTION AREA | OIL VOLUME IN THRUST | OIL VOLUME IN TRACTION | MODEL | HEIGHT CLOSED | Ø EXTERNAL VERSION N Ø EXTERNAL VERSION L | Ø PISTON | Ø STEM | JOINT HEIGHT | Ø DRILLED HEAD | STEM PROJECTION | INTERNAL STEM THREAD | STEM THREAD DEPTH | Ø INTERAXIS OF FIXING HOLES IN THE BASE | FIXING HOLES IN THE BASE HOLE DEPTH | EXTERNAL BODY THREAD | EXTERNAL BODY THREAD LENGTH | Ø THROUGH HOLE | WEIGHT VERSION N | WEIGHT VERSION L | |
| t*kN | t*kN | mm | cm² | cm² | cm 3 | cm 3 | Inmm | Dmm | Andmm | Fmm | Hmm | H1mm | Jmm | Kmm | Ohmm | Pmm | Umm | V / Zmm | Wmm | Xmm | Ymm | kg | kg | |
|
30 |
18 |
100 | 47.7 | 25.1 | 477 | 251 | COF30N100 | 196 |
115 |
90 | 70 | 21 | 152 | 57.5 | 2 | M48 x1.5 | 32 | 65 |
2xM10 |
M115 |
20 | 34 | 13 | 11 |
| 150 | 716 | 377 | COF30N150 | 246 | 202 | 16 | 14 | |||||||||||||||||
| 250 | 1193 | 628 | COF30N250 | 346 | 302 | 21 | 20 | |||||||||||||||||
|
60 |
31 |
75 | 84.3 | 44.1 | 632 | 331 | COF60N75 | 186 |
165 |
125 | 100 | 26 | 134 | 81.5 | 2 | M72 x1.5 | 40 | 90 |
4xM10 |
M165 |
25 | 54.5 | 26 | 18 |
| 100 | 842 | 442 | COF60N100 | 211 | 159 | 28 | 19 | |||||||||||||||||
| 150 | 1264 | 663 | COF60N150 | 261 | 209 | 34 | 24 | |||||||||||||||||
| 250 | 2106 | 1104 | COF60N250 | 361 | 309 | 46 | 32 | |||||||||||||||||
|
100 |
58 |
75 | 135.3 | 81.1 | 1015 | 608 | COF100N75 | 214 |
215 |
165 | 130 | 36 | 155 | 117.5 | 4 | M102 x1.5 | 55 | 130 |
4xM12 |
M215 |
35 | 80.5 | 47 | 29 |
| 150 | 2029 | 1216 | COF100N150 | 289 | 230 | 61 | 37 | |||||||||||||||||
| 250 | 3382 | 2027 | COF100N250 | 389 | 330 | 79 | 48 | |||||||||||||||||
|
150 |
76 |
200 | 205 | 106.9 | 4100 | 2136 | COF150N200 | 349 |
247 |
190 | 150 | 36 | 284 | 127.5 | 4 | M112 x2 | 60 | – | – | – | – | 80.5 | 100 | 71 |
|
200 |
94 |
200 | 282.7 | 132 | 5655 | 2639 | COF200N200 | 380 |
305 |
230 | 190 | 37 | 305 | 167.5 | 5 | M135 x2 | 70 | – | – | – | – | 103 | 160 | 108 |
Contact us for further technical information.
Europress, founded in 1919, is a worldwide leader, manufacturer and marketer of high-pressure hydraulic equipment. We continuously improve our services to offer you better options. Our effort in following the most advanced technology innovations in terms of quality, safety, and reliability are certified since 1996, year in which we have been awarded with the ISO 9001 Quality System Certification , and more recently in 2008 with the ISO 14001 Quality System Certification.
Additional information
| Model | COF30N100, COF30N150, COF30N250, COF60N75, COF60N100, COF60N150, COF60N250, COF100N75, COF100N150, COF100N250, COF150N200, COF200N200 |
|---|
