Code 62 O-Ring Flange – 60°/67° Bent Tube – Global Spiral
$79.798 – $218.986 ex GST
Description

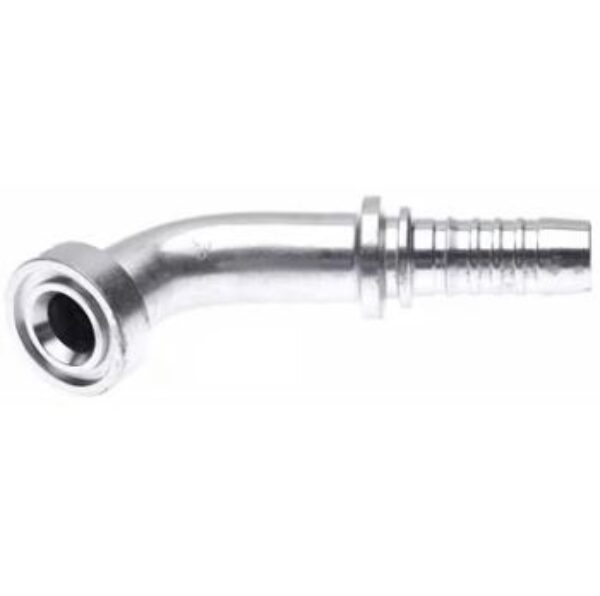

Code 62 O-Ring Flange – 60°/67° Bent Tube – Global Spiral
Gates Code 62 O-Ring Flange – 60°/67° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GS6FL60-12-12¥ | 12GS-12FLH60M | 3/4 | 19.1 | 3/4 | 41.4 | 37.0 | 137.0 | 86.0 | 8.8 |
| GS6FL60-16-12¥ | 12GS-16FLH60M | 3/4 | 19.1 | 1 | 47.8 | 44.0 | 136.0 | 85.0 | 9.5 |
| GS6FL60-16-16¥ | 16GS-16FLH60M | 1 | 25.4 | 1 | 47.8 | 44.0 | 157.0 | 100.8 | 9.5 |
| GS6FL60-20-20¥ | 20GS-20FLH60M | 1 1/4 | 31.7 | 1 1/4 | 54.1 | 55.0 | 186.0 | 114.9 | 10.3 |
| GS6FL60-24-20¥ | 20GS-24FLH60M | 1 1/4 | 31.7 | 1 1/2 | 63.5 | 64.0 | 194.0 | 122.9 | 12.6 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GS6FL67-16-16¥ | 16GS-16FLH67M | 1 | 25.4 | 1 | 47.8 | 51.0 | 151.0 | 94.6 | 9.5 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSM6FL60-24-24M | 24GSM-24FLH60M | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 64 | 253 | 158.2 | 12.6 |
| GSM6FL60-32-32 | 24GSM-32FLH60M | 2 | 50.8 | 2 | 79.5 | 83 | 312 | 197.4 | 12.6 |
¥ Coupling pricing & availability on request.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS6FL60-12-12, GS6FL60-16-12, GS6FL60-16-16, GS6FL60-20-20, GS6FL60-24-20, GSM6FL60-24-24M, GSM6FL60-32-32, GS6FL67-16-16 |
|---|
