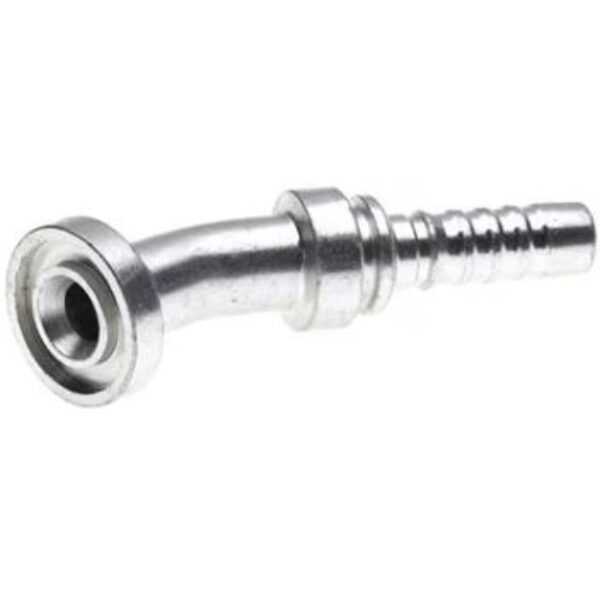

Code 62 O-Ring Flange – 22-1/2° Bent Tube – Global Spiral
Gates Code 62 O-Ring Flange – 22-1/2° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GS6FL22-16-12¥ | 12GS-16FLH22M | 3/4 | 19.1 | 1 | 47.8 | 14.0 | 138.0 | 87.0 | 9.5 |
| GS6FL22-16-16¥ | 16GS-16FLH22M | 1 | 25.4 | 1 | 47.8 | 14.0 | 155.0 | 98.6 | 9.5 |
| GS6FL22-20-20¥ | 20GS-20FLH22M | 1 1/4 | 31.7 | 1 1/4 | 54.1 | 15.0 | 186.0 | 114.9 | 10.3 |
| GS6FL22-24-20¥ | 20GS-24FLH22M | 1 1/4 | 31.7 | 1 1/2 | 63.5 | 18.0 | 188.0 | 116.9 | 12.6 |
¥ Coupling pricing & availability on request.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSM6FL22M-24-24 | 24GSM-24FLH22M | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 18 | 243 | 148.4 | 12.6 |
| GSM6FL22-24-24 | 24GSM-24FLH22-024 | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 24 | 242.5 | 147.5 | 12.6 |
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS6FL22-16-12, GS6FL22-16-16, GS6FL22-20-20, GS6FL22-24-20, GSM6FL22M-24-24, GSM6FL22-24-24 |
|---|
