Code 61 O-Ring Flange – 60° Bent Tube – Megacrimp
$124.474 ex GST
Description

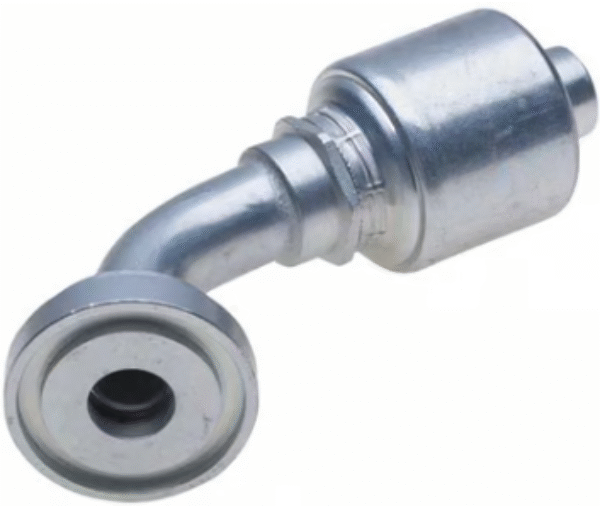

Code 61 O-Ring Flange – 60° Bent Tube – Megacrimp
Gates Code 61 O-Ring Flange – 60° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| MC3FL60-12-12¥ | 12G-12FL60M | 3/4 | 19.0 | 3/4 | 38.1 | 35.8 | 117.0 | 66.0 | 6.9 |
| MC3FL60-16-12¥ | 12G-16FL60M | 3/4 | 19.0 | 1 | 44.5 | 44.0 | 122.0 | 71.0 | 8.0 |
| MC3FL60-16-16¥ | 16G-16FL60M | 1 | 25.1 | 1 | 44.5 | 44.0 | 148.5 | 91.7 | 8.0 |
| MC3FL60-20-20¥ | 20G-20FL60S | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 45.0 | 158.0 | 99.0 | 8.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
† Komatsu-style flange
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSP3FL60-24-24 | 24GSP-24FL60 | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 8 | |||
| GSP3FL60-32-24 | 24GSP-32FL60S | 1 1/2 | 38.1 | 2 | 71.4 | 75 | 234 | 160.9 | 9.5 |
| GSP3FL60-32-32 | 32GSP-32FL60S | 2 | 50.8 | 2 | 71.4 | 75 | 259 | 167.1 | 9.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MC3FL60-12-12, MC3FL60-16-12, MC3FL60-16-16, MC3FL60-20-20, GSP3FL60-24-24, GSP3FL60-32-24, GSP3FL60-32-32 |
|---|
