Code 61 O-Ring Flange – 45° – Global Spiral
$66.538 – $641.750 ex GST
Description

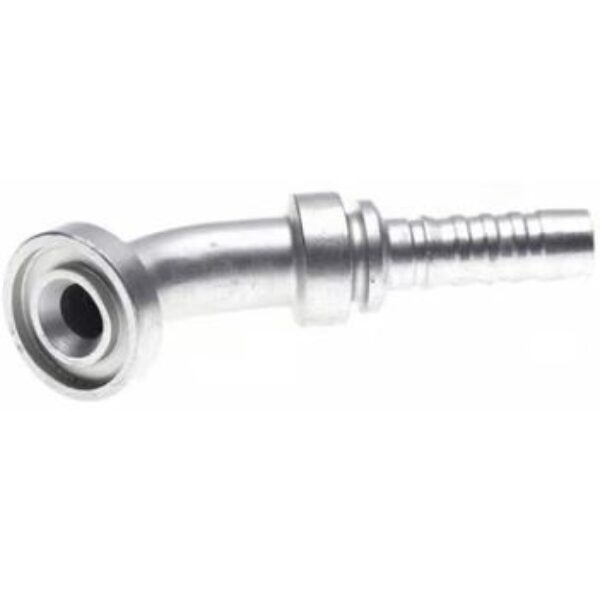

Code 61 O-Ring Flange – 45° Bent Tube – Global Spiral
Gates Code 61 O-Ring Flange – 45° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GS3FL45-08-06¥ | 6GS-8FL45M | 7347-44155 | 3/8 | 9.5 | 1/2 | 30.2 | 19.0 | 93.0 | 57.2 | 6.7 |
| GS3FL45-08-08 | 8GS-8FL45M | 7347-44245 | 1/2 | 12.7 | 1/2 | 30.2 | 19.0 | 94.0 | 56.5 | 6.7 |
| GS3FL45-12-08 | 8GS-12FL45M | 7347-44265 | 1/2 | 12.7 | 3/4 | 38.1 | 26.0 | 101.0 | 63.5 | 6.7 |
| GSKFL45-10-10 | 10GS-10FLK45-026† | 7347-73365 | 5/8 | 15.8 | 5/8 | 34.2 | 26.0 | 121.0 | 70.7 | 6.7 |
| GS3FL45-12-10¥ | 10GS-12FL45M | 7347-44355 | 5/8 | 15.9 | 3/4 | 38.1 | 26.0 | 127.0 | 76.7 | 6.7 |
| GS3FL45-12-12 | 12GS-12FL45M | 7347-44445 | 3/4 | 19.1 | 3/4 | 38.1 | 26.0 | 124.0 | 73.0 | 6.7 |
| GS3FL45-16-12 | 12GS-16FL45S* | 7347-73135 | 3/4 | 19.1 | 1 | 44.5 | 28.0 | 126.0 | 75.0 | 8.0 |
| GS3FL45-16-16 | 16GS-16FL45M* | 7347-44555 | 1 | 25.4 | 1 | 44.5 | 32.0 | 147.0 | 90.6 | 8.0 |
| GS3FL45-20-16 | 16GS-20FL45M* | 7347-44565 | 1 | 25.4 | 1 1/4 | 50.8 | 38.0 | 158.0 | 100.8 | 8.0 |
| GS3FL45-16-20¥ | 20GS-16FL45M* | 7347-44635 | 1 1/4 | 31.7 | 1 | 44.5 | 32.0 | 163.0 | 91.9 | 8.0 |
| GS3FL45-20-20 | 20GS-20FL45S* | 7347-73565 | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 32.0 | 170.0 | 98.9 | 8.0 |
| GS3FL45-24-20 | 20GS-24FL45S* | 7347-73575 | 1 1/4 | 31.7 | 1 1/2 | 60.5 | 38.0 | 176.0 | 104.8 | 8.0 |
*-16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi; -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GSP3FL45-20-24 | 24GSP-20FL45S | 7347-44715 | 1 1/2 | 38.1 | 1 1/4 | 50.8 | 32 | 180 | 114.5 | 8 |
| GSP3FL45-24-24 | 24GSP-24FL45S | 7347-44725 | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 38 | 202 | 128.6 | 8 |
| GSP3FL45-32-24 | 24GSP-32FL45S | 7347-44735 | 1 1/2 | 38.1 | 2 | 71.4 | 52 | 200 | 126.3 | 9.5 |
| GSP3FL45-24-32 | 32GSP-24FL45S | 7347-44785 | 2 | 50.8 | 1 1/2 | 60.3 | 38 | 206 | 113.7 | 8 |
| GSP3FL45-32-32 | 32GSP-32FL45-066 | 7347-44805 | 2 | 50.8 | 2 | 71.4 | 66 | 257 | 165 | 9.5 |
-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GSM3FL45-24-24 | 24GSM-24FL45M | 7341-01945 | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 44 | 230 | 135 | 8 |
| GSM3FL45-32-24 | 24GSM-32FL45S | 7341-01955 | 1 1/2 | 38.1 | 1 1/2 | 71.4 | 52 | 232 | 136.6 | 9.5 |
| GSM3FL45-32-32 | 32GSM-32FL45M | 7341-20265 | 2 | 50.8 | 2 | 79.5 | 56 | 288 | 173.5 | 9.5 |
¥ Coupling pricing & availability on request.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS3FL45-08-06, GS3FL45-08-08, GS3FL45-12-08, GSKFL45-10-10, GS3FL45-12-10, GS3FL45-12-12, GS3FL45-16-12, GS3FL45-16-16, GS3FL45-20-16, GS3FL45-16-20, GS3FL45-20-20, GS3FL45-24-20, GSP3FL45-20-24, GSP3FL45-24-24, GSP3FL45-32-24, GSP3FL45-24-32, GSP3FL45-32-32, GSM3FL45-24-24, GSM3FL45-32-24, GSM3FL45-32-32 |
|---|
