Code 61 O-Ring Flange – 45° Bent Tube – Megacrimp
$63.801 – $296.939 ex GST
Description

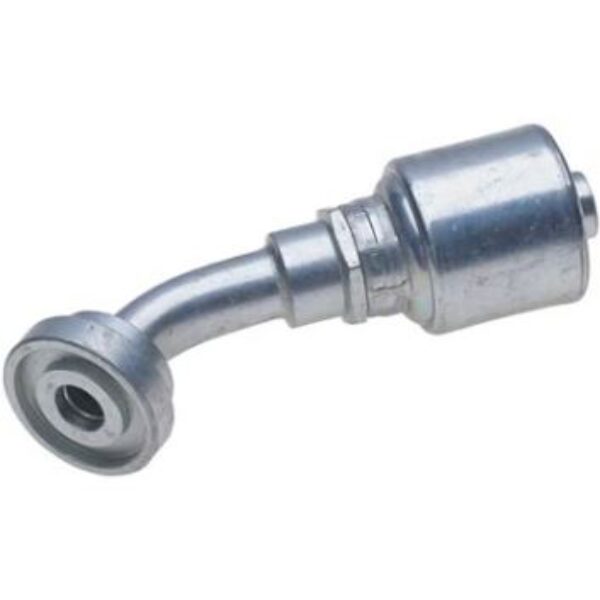

Code 61 O-Ring Flange – 45° Bent Tube – Megacrimp
Gates Code 61 O-Ring Flange – 45° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| MC3FL45-08-08¥ | 8G-8FL45 | 1/2 | 12.7 | 1/2 | 30.2 | 19.8 | 94.0 | 56.5 | 6.7 |
| MC3FL45-12-08¥ | 8G-12FL45M | 1/2 | 12.7 | 3/4 | 38.1 | 19.8 | 94.0 | 56.5 | 6.9 |
| MC3FL45-10-10 | 10G-10FLK45† | 5/8 | 15.9 | 5/8 | 34.1 | 26.0 | 106.5 | 69.0 | 6.9 |
| MC3FL45-12-12 | 12G-12FL45M | 3/4 | 19.0 | 3/4 | 38.1 | 25.4 | 118.5 | 67.5 | 6.9 |
| MC3FL45-16-12 | 12G-16FL45S | 3/4 | 19.0 | 1 | 44.4 | 25.4 | 118.5 | 67.5 | 8.0 |
| MC3FL45-16-16 | 16G-16FL45S | 1 | 25.4 | 1 | 44.4 | 26.9 | 129.7 | 72.9 | 8.0 |
| MC3FL45-20-16 | 16G-20FL45S | 1 | 25.4 | 1 1/4 | 50.8 | 26.9 | 129.5 | 72.7 | 8.0 |
| MC3FL45-20-20 | 20G-20FL45S | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 29.2 | 142.0 | 83.0 | 8.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
† Komatsu-style flange
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSP3FL45-20-24 | 24GSP-20FL45S | 1 1/2 | 38.1 | 1 1/4 | 50.8 | 32 | 180 | 114.5 | 8 |
| GSP3FL45-24-24 | 24GSP-24FL45S | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 38 | 202 | 128.6 | 8 |
| GSP3FL45-32-24 | 24GSP-32FL45S | 1 1/2 | 38.1 | 2 | 71.4 | 52 | 200 | 126.3 | 9.5 |
| GSP3FL45-24-32 | 32GSP-24FL45S | 2 | 50.8 | 1 1/2 | 60.3 | 38 | 206 | 113.7 | 8 |
| GSP3FL45-32-32 | 32GSP-32FL45-066 | 2 | 50.8 | 2 | 71.4 | 66 | 257 | 165 | 9.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MC3FL45-08-08, MC3FL45-12-08, MC3FL45-10-10, MC3FL45-12-12, MC3FL45-16-12, MC3FL45-16-16, MC3FL45-20-16, MC3FL45-20-20, GSP3FL45-20-24, GSP3FL45-24-24, GSP3FL45-32-24, GSP3FL45-24-32, GSP3FL45-32-32 |
|---|
