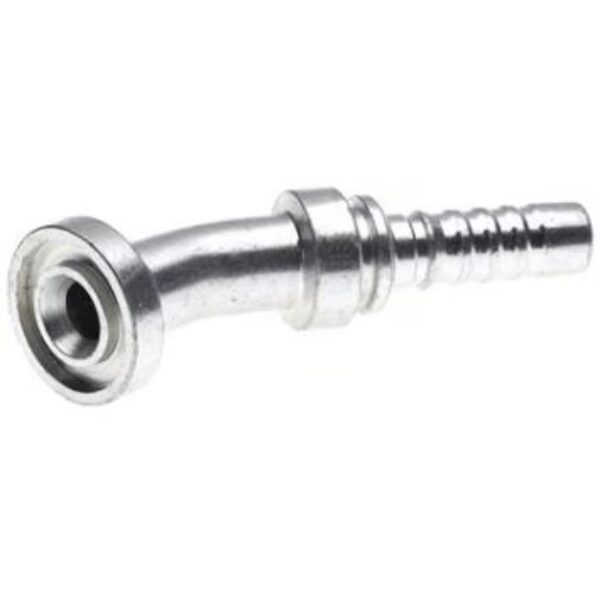

Code 61 O-Ring Flange – 22-1/2° Bent Tube – Global Spiral
Gates Code 61 O-Ring Flange – 22-1/2° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GS3FL22-08-08¥ | 8GS-8FL22M | 7347-42245 | 1/2 | 12.7 | 1/2 | 30.2 | 9.0 | 96.0 | 58.5 | 6.7 |
| GS3FL22-12-12¥ | 12GS-12FL22M | 7347-42445 | 3/4 | 19.1 | 3/4 | 38.1 | 11.0 | 131.0 | 80.0 | 6.7 |
| GS3FL22-16-12¥ | 12GS-16FL22M* | 7347-42465 | 3/4 | 19.1 | 1 | 44.5 | 14.0 | 133.0 | 82.0 | 8.0 |
| GS3FL22-16-16¥ | 16GS-16FL22M* | 7347-42555 | 1 | 25.4 | 1 | 44.5 | 14.0 | 155.0 | 98.4 | 8.0 |
| GS3FL22-20-16¥ | 16GS-20FL22M* | 7347-42565 | 1 | 25.4 | 1 1/4 | 50.8 | 15.0 | 168.0 | 111.0 | 8.0 |
| GS3FL22-20-20¥ | 20GS-20FL22M* | 7347-42645 | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 15.0 | 178.0 | 106.9 | 8.0 |
| GS3FL22-24-20¥ | 20GS-24FL22M* | 7347-42655 | 1 1/4 | 31.7 | 1 1/2 | 60.5 | 18.0 | 186.0 | 114.9 | 8.0 |
*-16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi; -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.
| MJ Hydraulic Part Number | Gates Desc | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GSP3FL22-24-24 | 24GSP-24FL22M | 7347-42725 | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 18 | 211 | 137.5 | 8 |
| GSP3FL22-32-24 | 24GSP-32FL22M | 7347-42735 | 1 1/2 | 38.1 | 2 | 71.4 | 22 | 214 | 140.2 | 9.5 |
| GSP3FL22-32-32 | 32GSP-32FL22M | 7347-42795 | 2 | 50.8 | 2 | 71.4 | 22 | 275 | 183.5 | 9.5 |
-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.
¥ Coupling pricing & availability on request.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS3FL22-08-08, GS3FL22-12-12, GS3FL22-16-12, GS3FL22-16-16, GS3FL22-20-16, GS3FL22-20-20, GS3FL22-24-20, GSP3FL22-24-24, GSP3FL22-32-24, GSP3FL22-32-32 |
|---|
