Code 61 O-Ring Flange – 22 1/2° Bent Tube – Megacrimp
$93.789 – $270.912 ex GST
Description
Code 61 O-Ring Flange – 22 1/2° Bent Tube – Megacrimp

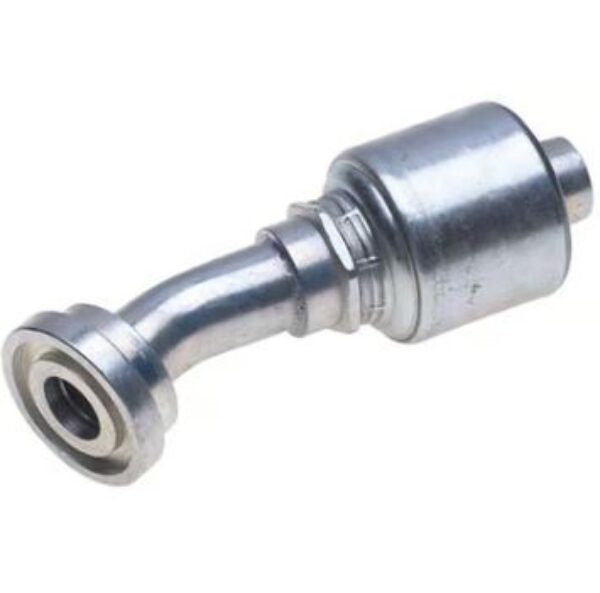

Gates Code 61 O-Ring Flange – 22 1/2° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| MC3FL22-12-12¥ | 12G-12FL22M | 3/4 | 19.0 | 3/4 | 38.1 | 11.2 | 113.5 | 62.5 | 6.9 |
| MC3FL22-16-12¥ | 12G-16FL22M-14 | 3/4 | 19.0 | 1 | 44.5 | 14.0 | 121.0 | 70.0 | 8.0 |
| MC3FL22-16-16¥ | 16G-16FL22M | 1 | 25.4 | 1 | 44.5 | 11.2 | 123.0 | 66.2 | 8.0 |
| MC3FL22-20-20¥ | 20G-20FL22M | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 12.7 | 131.5 | 72.5 | 8.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
† Komatsu-style flange
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | ||
| GSP3FL22-24-24 | 24GSP-24FL22M | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 18 | 211 | 137.5 | 8 |
| GSP3FL22-32-24 | 24GSP-32FL22M | 1 1/2 | 38.1 | 2 | 71.4 | 22 | 214 | 140.2 | 9.5 |
| GSP3FL22-32-32 | 32GSP-32FL22M | 2 | 50.8 | 2 | 71.4 | 22 | 275 | 183.5 | 9.5 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MC3FL22-12-12, MC3FL22-16-12, MC3FL22-16-16, MC3FL22-20-20, GSP3FL22-24-24, GSP3FL22-32-24, GSP3FL22-32-32 |
|---|
