Code 61 O-Ring Flange – 135° – Global Spiral
$181.875 ex GST
Description

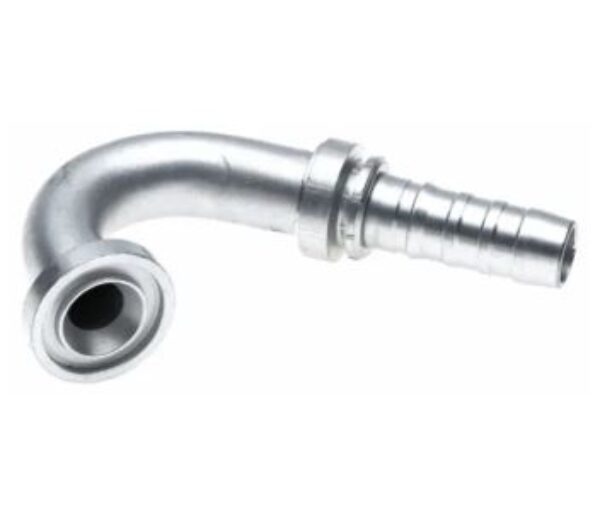

Code 61 O-Ring Flange – 135° Bent Tube – Global Spiral
Gates Code 61 O-Ring Flange – 135° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GS3FL135-12-12¥ | 12GS-12FL135-070 | 7347-76825 | 3/4 | 19.1 | 3/4 | 38.1 | 70.0 | 97.0 | 46.0 | 6.7 |
-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.-16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi; -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Coupling pricing & availability on request.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS3FL135-12-12 |
|---|
