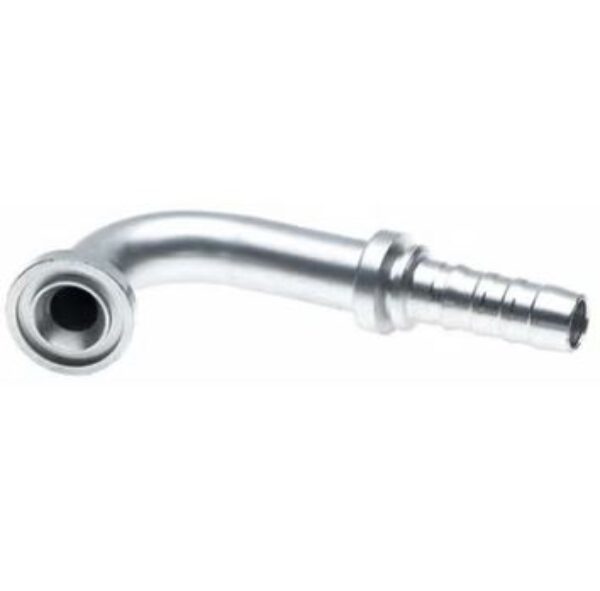

Code 61 O-Ring Flange – 110° Bent Tube – Global Spiral
Gates Code 61 O-Ring Flange – 110° Bent Tube hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GS3FL110-12-12¥ | 12GS-12FL110-064 | 7347-76025 | 3/4 | 19.1 | 3/4 | 38.1 | 64.0 | 131.0 | 80.0 | 6.7 |
| GS3FL110-16-16¥ | 16GS-16FL110-073* | 7347-73005 | 1 | 25.4 | 1 | 44.4 | 73.0 | 148.0 | 91.6 | 8.0 |
| GS3FL110-20-20¥ | 20GS-20FL110-080* | 7347-76115 | 1 1/4 | 31.7 | 1 1/4 | 50.8 | 80.0 | 181.0 | 109.9 | 8.0 |
| GS3FL110-24-20¥ | 20GS-24FL110-080* | 7347-76125 | 1 1/4 | 31.7 | 1 1/2 | 60.5 | 80.0 | 181.0 | 109.9 | 8.0 |
| MJ Hydraulic Part Number | Gates Desc. | Gates Part Number | Hose ID | N | M | T | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | mm | |||
| GSP3FL110-24-24¥ | 24GSP-24FL110-094 | 7347-85635 | 1 1/2 | 38.1 | 1 1/2 | 60.3 | 94 | 202 | 128.9 | 8 |
| GSP3FL110-32-32¥ | 32GSP-32FL110-140 | 7347-85465 | 2 | 50.8 | 2 | 71.4 | 140 | 248 | 156 | 9.5 |
-24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.-16FL Max. W.P. 5,000 psi; -20FL Max. W.P. 4,000 psi; -24FL Max. W.P. 3,000 psi; -32FL Max. W.P. 2,000 psi.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Coupling pricing & availability on request.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS3FL110-12-12, GS3FL110-16-16, GS3FL110-20-20, GS3FL110-24-20, GSP3FL110-24-24, GSP3FL110-32-32 |
|---|
