CAT Style O-Ring Flange – Global Spiral
$99.263 – $560.363 ex GST
Description

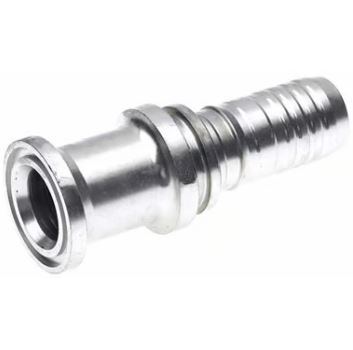

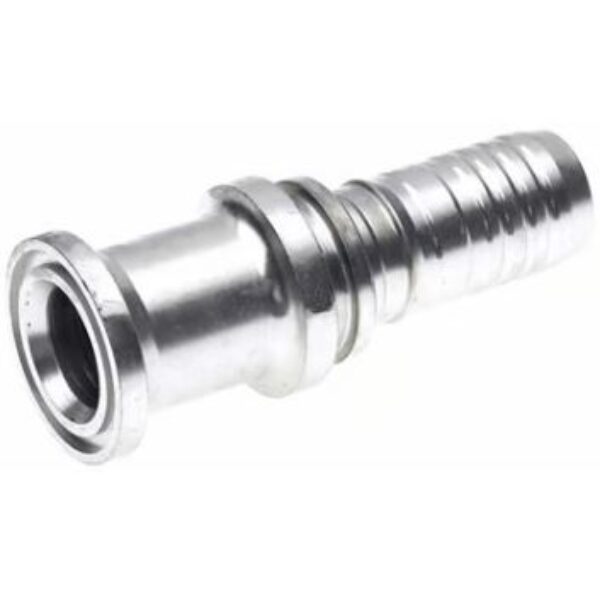

CAT Style O-Ring Flange – Global Spiral
Gates CAT Style O-Ring Flange hose couplings are part of a two-piece coupling specifically designed for use on Gates’ range of hydraulic hoses.
Global Spiral Couplings – Suits EFG3K, EFG4K, EFG5K, EFG6K
D3 – Fittings for Spiral Hose – Product Download
NOTE: These 9FL flanges are designed with a thicker flange head. The 0.56” flange dimension is frequently found on
Caterpillar equipment. These flanges let the user utilize the existing Caterpillar flange halves or new Gates Caterpillar flange
halves. At the user’s option, standard Code 62 flanges and halves can be used in place of Caterpillar flanges and halves.
The standard Code 62 flange head thickness ranges between .305” and .495″.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | ||
| GS9FL-12-12 | 12GS-12FLC | 3/4 | 19.1 | 3/4 | 41.4 | 145.0 | 94.0 | 14.2 |
| GS9FL-16-12 | 12GS-16FLC | 3/4 | 19.1 | 1 | 47.8 | 145.0 | 94.0 | 14.2 |
| GS9FL-16-16 | 16GS-16FLC | 1 | 25.4 | 1 | 47.8 | 155.0 | 98.2 | 14.2 |
| GS9FL-20-16 | 16GS-20FLC | 1 | 25.4 | 1 1/4 | 54.1 | 155.0 | 98.2 | 14.2 |
| GS9FL-20-20 | 20GS-20FLC | 1 1/4 | 31.7 | 1 1/4 | 54.1 | 187.0 | 115.9 | 14.2 |
| GS9FL-24-20 | 20GS-24FLC | 1 1/4 | 31.7 | 1 1/2 | 63.5 | 187.0 | 115.9 | 14.2 |
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | N | M | L | C | F | |
| inch | mm | inch | mm | mm | mm | mm | ||
| GSM9FL-24-24 | 24GSM-24FLC | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 189 | 94.3 | 14.2 |
| GSM9FLL-24-24 | 24GSM-24FLCL | 1 1/2 | 38.1 | 1 1/2 | 63.5 | 238 | 143.2 | 14.2 |
| GSM9FL-32-24 | 24GSM-32FLC | 1 1/2 | 38.1 | 2 | 79.4 | 200 | 105 | 14.2 |
| GSM9FL-32-32 | 32GSM-32FLC | 2 | 50.8 | 2 | 79.4 | 227.7 | 113.7 | 14.2 |
¥ Coupling pricing & availability on request.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates GlobalSpiral Coupling is a no-skive, easy to use coupling which provides a high quality performance and can be used for extremely high-pressure and high-impulse hydraulic applications. The no-skive ferrule abolishes the need for skiving equipment while also reducing labour and assembly time as well reducing odours, contamination from dust and assembly errors.
Additional information
| Model | GS9FL-12-12, GS9FL-16-12, GS9FL-16-16, GS9FL-20-16, GS9FL-20-20, GS9FL-24-20, GSM9FL-24-24, GSM9FLL-24-24, GSM9FL-32-24, GSM9FL-32-32 |
|---|
