BSPT Male – Megacrimp
$20.630 – $88.220 ex GST
Description

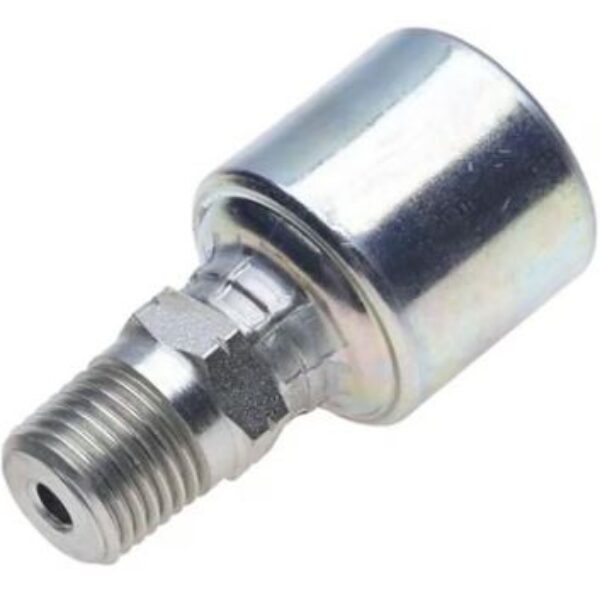

BSPT Male – Megacrimp
Gates BSPT Male hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | H | |
| inch | mm | mm | mm | mm | |||
| MCBM-04-04 | 4G-4MBSPT | 1/4 | 6.4 | 1/4” – 19 | 50.8 | 24.8 | 14.0 |
| MCBM-06-04 | 4G-6MBSPT | 1/4 | 6.4 | 3/8” – 19 | 52.0 | 26.0 | 19.0 |
| MCBM-06-05¥ | 5G-6MBSPT | 5/16 | 7.9 | 3/8” – 19 | 54.1 | 26.1 | 19.0 |
| MCBM-06-06 | 6G-6MBSPT | 3/8 | 9.5 | 3/8” – 19 | 54.0 | 26.1 | 19.0 |
| MCBM-08-06 | 6G-8MBSPT | 3/8 | 9.5 | 1/2” – 14 | 58.8 | 30.9 | 22.0 |
| MCBM-06-08 | 8G-6MBSPT | 1/2 | 12.7 | 3/8” – 19 | 64.5 | 27.0 | 22.0 |
| MCBM-08-08 | 8G-8MBSPT | 1/2 | 12.7 | 1/2” – 14 | 68.4 | 30.9 | 22.0 |
| MCBM-10-10¥ | 10G-10MBSPT | 5/8 | 15.9 | 5/8” – 14 | 69.9 | 32.4 | 24.0 |
| MCBM-12-12 | 12G-12MBSPT | 3/4 | 19.0 | 3/4” – 14 | 86.7 | 35.7 | 32.0 |
| MCBM-16-16 | 16G-16MBSPT | 1 | 25.4 | 1” – 11 | 98.4 | 41.6 | 36.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCBM-04-04, MCBM-06-04, MCBM-06-05, MCBM-06-06, MCBM-08-06, MCBM-06-08, MCBM-08-08, MCBM-10-10, MCBM-12-12, MCBM-16-16 |
|---|
