BSPP Female O-Ring Swivel – Megacrimp
$15.139 – $358.462 ex GST
Description

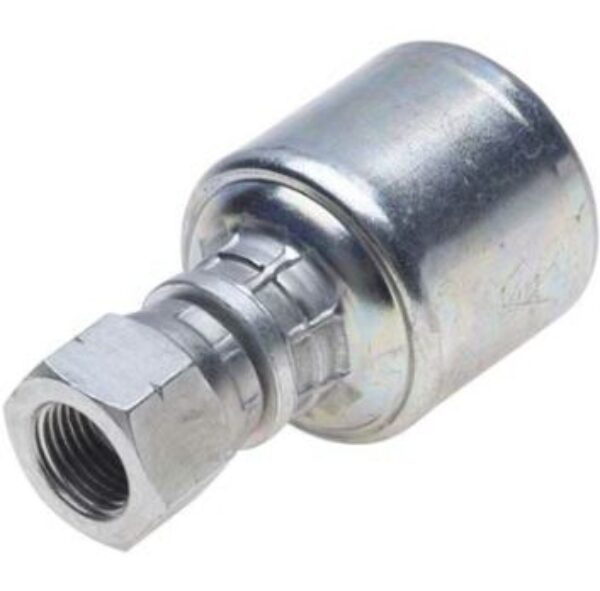

BSPP Female O-Ring Swivel – Megacrimp
Gates BSPP Female O-Ring Swivel hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | H | |
| inch | mm | mm | mm | mm | |||
| MCBF-02-04 | 4G-2FBSPX (Ø) | 1/4 | 6.4 | 1/8” – 28 | 44.0 | 18.0 | 14.0 |
| MCBF-04-04 | 4G-4FBSPORX | 1/4 | 6.4 | 1/4” – 19 | 48.0 | 22.0 | 19.0 |
| MCBF-06-04 | 4G-6FBSPORX | 1/4 | 6.4 | 3/8” – 19 | 52.0 | 26.0 | 22.0 |
| MCBF-06-05¥ | 5G-6FBSPORX | 5/16 | 7.9 | 3/8” – 19 | 54.0 | 26.0 | 22.0 |
| MCBF-08-05¥ | 5G-8FBSPORX | 5/16 | 7.9 | 1/2” – 14 | 54.8 | 26.8 | 27.0 |
| MCBF-06-06 | 6G-6FBSPORX | 3/8 | 9.5 | 3/8” – 19 | 53.2 | 25.3 | 22.0 |
| MCBF-08-06 | 6G-8FBSPORX | 3/8 | 9.5 | 1/2” – 14 | 54.7 | 26.8 | 27.0 |
| MCBF-06-08 | 8G-6FBSPORX | 1/2 | 12.7 | 3/8” – 19 | 66.5 | 29.0 | 22.0 |
| MCBF-08-08 | 8G-8FBSPORX | 1/2 | 12.7 | 1/2” – 14 | 64.2 | 26.7 | 27.0 |
| MCBF-10-08 | 8G-10FBSPORX | 1/2 | 12.7 | 5/8” – 14 | 68.0 | 30.5 | 30.0 |
| MCBF-12-08 | 8G-12FBSPORX | 1/2 | 12.7 | 3/4” – 14 | 69.5 | 32.0 | 32.0 |
| MCBF-10-10 | 10G-10FBSPORX | 5/8 | 15.9 | 5/8” – 14 | 68.5 | 31.0 | 30.0 |
| MCBF-12-10 | 10G-12FBSPORX | 5/8 | 15.9 | 3/4” – 14 | 69.5 | 32.0 | 32.0 |
| MCBF-12-12 | 12G-12FBSPORX | 3/4 | 19.0 | 3/4” – 14 | 83.0 | 32.0 | 32.0 |
| MCBF-12-16 | 16G-12FBSPORX | 3/4 | 19.0 | 3/4” – 14 | 82.7 | 25.9 | 32.0 |
| MCBF-16-12 | 12G-16FBSPORX | 3/4 | 19.0 | 1” – 11 | 87.0 | 36.0 | 41.0 |
| MCBF-16-16 | 16G-16FBSPORX | 1 | 25.4 | 1” – 11 | 96.0 | 39.2 | 41.0 |
| MCBF-20-20 | 20G-20FBSPORX | 1-1/4 | 31.8 | 1.1/4” – 11 | 100.5 | 41.5 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | H1 | H2 | A | B | |
| inch | mm | Inch | Inch | mm | mm | |||
| GSPBF-24-24 | 24GSP-24FBSPORX | 1 1/2 | 38.1 | 1 1/2-11 | 2.17 | 125 | 51.3 | |
| GSPBF-32-32 | 32GSP-32FBSPORX | 2 | 50.8 | 2-11 | 2.76 | 152 | 60 | |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCBF-02-04, MCBF-04-04, MCBF-06-04, MCBF-06-05, MCBF-08-05, MCBF-06-06, MCBF-08-06, MCBF-06-08, MCBF-08-08, MCBF-10-08, MCBF-12-08, MCBF-10-10, MCBF-12-10, MCBF-12-12, MCBF-12-16, MCBF-16-12, MCBF-16-16, MCBF-20-20, GSPBF-24-24, GSPBF-32-32 |
|---|
