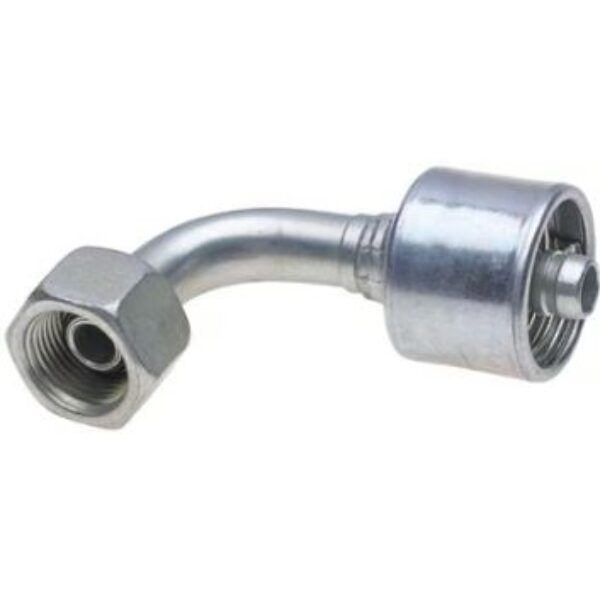

BSPP Female O-Ring Swivel – 90° Bent Tube – Megacrimp
Gates BSPP Female O-Ring Swivel – 90° hose couplings are a one peice coupling specifically designed for use on Gates’ range of hydraulic hoses.
D2 – Fittings for Wire Braid Hose – Product Download
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | A | B | E | H | |
| inch | mm | mm | mm | mm | mm | |||
| MCBF90-04-04 | 4G-4FBSPORX90 | 1/4 | 6.4 | 1/4” – 19 | 52.5 | 26.5 | 23.5 | 19.0 |
| MCBF90-06-04 | 4G-6FBSPORX90 | 1/4 | 6.4 | 3/8” – 19 | 50.5 | 24.5 | 32.0 | 22.0 |
| MCBF90-06-05¥ | 5G-6FBSPORX90 | 5/16 | 7.9 | 3/8” – 19 | 59.0 | 31.0 | 32.0 | 22.0 |
| MCBF90-06-06 | 6G-6FBSPORX90 | 3/8 | 9.5 | 3/8” – 19 | 61.9 | 34.0 | 32.0 | 22.0 |
| MCBF90-08-06 | 6G-8FBSPORX90 | 3/8 | 9.5 | 1/2” – 14 | 60.1 | 32.2 | 37.5 | 27.0 |
| MCBF90-08-08 | 8G-8FBSPORX90 | 1/2 | 12.7 | 1/2” – 14 | 78.0 | 40.5 | 37.5 | 27.0 |
| MCBF90-10-08¥ | 8G-10FBSPORX90 | 1/2 | 12.7 | 5/8” – 14 | 81.5 | 44.0 | 46.0 | 30.0 |
| MCBF90-10-10 | 10G-10FBSPORX90 | 5/8 | 15.9 | 5/8” – 14 | 84.1 | 46.6 | 46.0 | 30.0 |
| MCBF90-12-10¥ | 10G-12FBSPORX90 | 5/8 | 15.9 | 3/4” – 14 | 84.1 | 46.6 | 60.0 | 32.0 |
| MCBF90-12-12 | 12G-12FBSPORX90 | 3/4 | 19.0 | 3/4” – 14 | 107.0 | 56.0 | 60.0 | 32.0 |
| MCBF90-16-12 | 12G-16FBSPORX90 | 3/4 | 19.0 | 1” – 11 | 112.2 | 61.2 | 70.0 | 41.0 |
| MCBF90-16-16 | 16G-16FBSPORX90 | 1 | 25.4 | 1” – 11 | 131.1 | 74.3 | 70.0 | 41.0 |
| MCBF90-20-20 | 20G-20FBSPORX90 | 1-1/4 | 31.8 | 1.1/4” – 11 | 141.8 | 82.8 | 80.0 | 50.0 |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
| MJ Hydraulic Part Number | Gates Desc. | Hose ID | Thread size | H1 | H2 | T | L | C | |
| inch | mm | Inch | Inch | mm | mm | mm | |||
| GSPBF90-24-24 | 24GSP-24FBSPORX90 | 1 1/2 | 38.1 | 1 1/2-11 | 2.17 | 100 | 194.6 | 120.9 | |
| GSPBF90-32-32 | 32GSP-32FBSPORX90 | 2 | 50.8 | 2-11 | 2.76 | 129.1 | 254.7 | 162.7 | |
¥ Pricing & availability on request, contact us. Minimum purchase quantity may apply.
Gates eCrimp provides the most up-to-date crimp specifications for all Gates hose and fitting combinations.
The Gates MegaCrimp couplings give you a leak-proof seal that’s so innovative, it’s patented*. During testing, it surpassed one million impulse cycles. MegaCrimp couplings set a new standard for hydraulic couplings. The unique “C” insert ensures “weep-free” concentric crimping to keep equipment and the environment clean.
FULL-TORQUE NUT™ DESIGN – One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut™ technology now available on Gates MegaCrimp and GlobalSpiral® couplings.
Additional information
| Model | MCBF90-04-04, MCBF90-06-04, MCBF90-06-05, MCBF90-06-06, MCBF90-08-06, MCBF90-08-08, MCBF90-10-08, MCBF90-10-10, MCBF90-12-10, MCBF90-12-12, MCBF90-16-12, MCBF90-16-16, MCBF90-20-20, GSPBF90-24-24, GSPBF90-32-32 |
|---|
